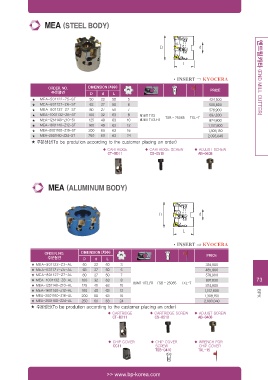

Page 15 - bpk_cutter

MEA (STEEL BODY)

•INSERT ⇒ KYOCERA 엔드밀카타 (END MILL CUTTER)

ORDER. NO. DIMENSION (치수) PRICE
주문형번 DdL
424,500
★ MEA-501122-Z5-ST 50 22 50 5 506,800
★ MEA-631127-Z6-ST 63 27 50 578,900
★ MEA-801127-Z7-ST 80 27 50 6 697,830
★ MEA-1001132-Z8-ST 100 32 63 874,800
★ MEA-1251140-Z10-ST 125 40 63 7 1,157,800
★ MEA-1601140-Z12-ST 160 40 63 1,308,150
★ MEA-2001160-Z16-ST 200 60 63 8 BDMT 11T3 TSB - 25065 TXL-7 2,093,040
★ MEA-2501160-Z24-ST 250 60 63 10 BDMT 11T3..FR

12

16

24

★ 주문생산(To be prodution according to the customer placing an order)

◆ CARTRIDGE ◆ CARTRIDGE SCREW ◆ ADJUST SCREW
CT-BD11 CS-0510 AB-0408

MEA (ALUMINUM BODY)

•INSERT ⇒ KYOCERA

ORDER. NO. DIMENSION (치수) PRICE
주문형번 DdL

★ MEA-501122-Z3-AL 50 22 50 3 324,500
485,000
★ MEA-631127-Z5-AL 63 27 50 5 578,900
697,830
★ MEA-801127-Z7-AL 80 27 50 7 874,800 73
1,157,800
★ MEA-1001132-Z8-AL 100 32 63 8 BDMT 11T3..FR TSB - 25065 TXL-7 1,308,150
★ MEA-1251140-Z10-AL 125 40 63 10 2,093,040

★ MEA-1601140-Z12-AL 160 40 63 12

★ MEA-2001160-Z16-AL 200 60 63 16

★ MEA-2501160-Z24-AL 250 60 63 24

★ 주문생산(To be prodution according to the customer placing an order)

◆ CARTRIDGE ◆ CARTRIDGE SCREW ◆ ADJUST SCREW
CT-BD11 CS-0510 AB-0408

◆ CHIP COVER ◆ CHIP COVER ◆ WRENCH FOR
CC11 SCREW CHIP COVER
TSB-0410 TXL-15

>> www.bp-korea.com
