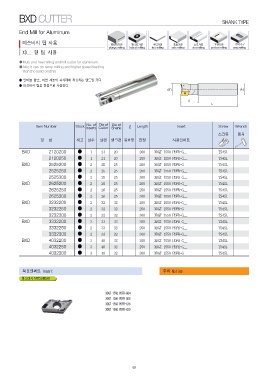

BXD CUTTER SHANK TYPE

End Mill for Aluminum

미쓰비시 팁 사용 플런지가공 헬리칼가공 바닥가공 측면가공 슬롯가공 포켓가공 경사가공
XD__ 형 팁 사용 face milling side milling slot milling pocket milling ramp milling
plunge milling helical milling

●Multi and free milling endmill cutter for aluminium.
●Also it can do ramp milling and higher speed feeding

than the solid endmill.

● 알미늄 합금, 비철 계통의 피삭재에 적용하는 엔드밀 카타
● 미쓰비시 팁을 전용으로 사용한다.

Item Number Stock No. of Dia of Dia of ℓ Length Insert Screw Wrench
Inserts Cutter Shank 스크류 렌치

형번 재고 날수 날경 생크경 유효장 전장 사용인서트

BXD 2120200 ● 1 21 20 200 XDGT 1550 PDFR-G__ TS4SL
BXD 2120250 ● 1 21 20 250 XDGT 1550 PDFR-G__ TS4SL
BXD 2525200 ● 2 25 25 200 XDGT 1550 PDFR-G__ TS4SL
BXD 2525250 ● 2 25 25 250 XDGT 1550 PDFR-G__ TS4SL
BXD 2525300 ● 2 25 25 300 XDGT 1550 PDFR-G__ TS4SL
BXD 2625200 ● 2 26 25 200 XDGT 1550 PDFR-G__ TS4SL
2625250 ● 2 26 25 250 XDGT 1550 PDFR-G__ TS4SL
2625300 ● 2 26 25 300 XDGT 1550 PDFR-G__ TS4SL
3232200 ● 2 32 32 200 XDGT 1550 PDFR-G__ TS4SL
3232250 ● 2 32 32 250 XDGT 1550 PDFR-G__ TS4SL
3232300 ● 2 32 32 300 XDGT 1550 PDFR-G__ TS4SL
3332200 ● 2 33 32 200 XDGT 1550 PDFR-G__ TS4SL
3332250 ● 2 33 32 250 XDGT 1550 PDFR-G__ TS4SL
3332300 ● 2 33 32 300 XDGT 1550 PDFR-G__ TS4SL
4032200 ● 3 40 32 200 XDGT 1550 PDFR-G__ TS4SL
4032250 ● 3 40 32 250 XDGT 1550 PDFR-G__ TS4SL
4032300 ● 3 40 32 300 XDGT 1550 PDFR-G__ TS4SL

적용인써트 Insert 주의 Notice

미스비시 MITSUBISHI

XDGT 1550 PDFR-G04
XDGT 1550 PDFR-G08
XDGT 1550 PDFR-G16
XDGT 1550 PDFR-G20

49
