MIRAEPO NC TOTAL TOOLING SYSTEM

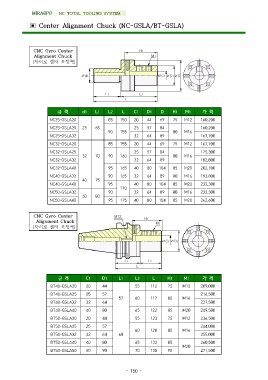

▣ Center Alignment Chuck (NC-GSLA/BT-GSLA)

CNC Gyro Center H1
Alignment Chuck M1
(자이로 센터 조정척)
∅C1 ∅D1∅D
∅d1

L1 L2
L

규격 d1 L1 L2 L C1 D1 D H1 M1 가격

NC25-GSLA20 85 150 20 44 69 75 M12 160,200

NC25-GSLA25 25 65 90 155 25 57 84 80 M16 160,200

NC25-GSLA32 32 64 89 167,700

NC32-GSLA20 85 155 20 44 69 75 M12 167,700

NC32-GSLA25 32 70 90 160 25 57 84 80 M16 175,300

NC32-GSLA32 32 64 89 182,800

NC32-GSLA40 95 165 40 80 104 85 M20 202,100

NC40-GSLA32 40 75 90 165 32 64 89 80 M16 193,800

NC40-GSLA40 95 40 80 104 85 M20 232,300
170
NC50-GSLA32 90 32 64 89 80 M16 232,300
50 80
NC50-GSLA40 95 175 40 80 104 85 M20 262,600

CNC Gyro Center M12 H1
Alignment Chuck M1

(자이로 센터 조정척) ∅C1 ∅D1

L1 L2
L

규격 C1 D1 L1 L2 L H1 M1 가 격

BT40-GSLA20 20 44 55 112 75 M12 209,000

BT40-GSLA25 25 57 57 60 117 80 M16 216,500

BT40-GSLA32 32 64 227,500

BT40-GSLA40 40 80 65 122 85 M20 249,500

BT50-GSLA20 20 44 55 123 75 M12 236,500

BT50-GSLA25 25 57 60 128 80 M16 244,000

BT50-GSLA32 32 64 68 255,000

BT50-GSLA40 40 80 65 133 85 M20 260,500
BT50-GSLA50 50 90
70 138 90 271,500

- 150 -
