MIRAEPO NC TOTAL TOOLING SYSTEM

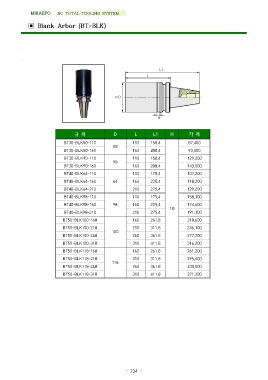

▣ Blank Arbor (BT-BLK)
8.
9.
L1
L
∅D
H
규격 D L L1 H 가 격
BT30-BLK50-110 110 158.4 87,400
BT30-BLK50-160 50 93,500
160 208.4
BT30-BLK90-110 110 158.4 129,200
BT30-BLK90-160 90 143,000
160 208.4
BT40-BLK64-110 110 175.4 107,200
BT40-BLK64-160 64 160 225.4 118,200
BT40-BLK64-210 210 275.4 129,200
BT40-BLK98-110 110 175.4 158,100
BT40-BLK98-160 98 160 225.4 10 174,600
BT40-BLK98-210
210 275.4 191,100
BT50-BLK100-160 160 261.8 218,600
BT50-BLK100-210 100 210 311.8 246,100
277,700
BT50-BLK100-260 260 361.8
BT50-BLK100-310 310 411.8 316,200
BT50-BLK118-160 160 261.8 261,200
295,600
BT50-BLK118-210 118 210 311.8 330,000
BT50-BLK118-260 260 361.8
BT50-BLK118-310 310 411.8 371,200
