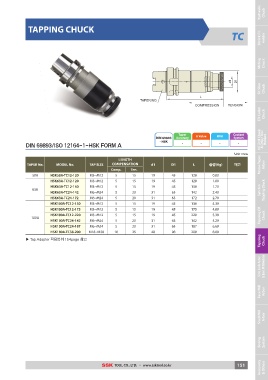

TAPPING CHUCK TC Shrink Fit
Holder

Milling
Chuck

d1 SK Slim
D1 Chuck

TAPER NO. L
COMPRESSION
TENSION ER Collet
Chuck

DIN 69893/ISO 12164-1-HSK FORM A DIN 69893 Taper G Value RPM Coolant N&COHDtroilhlledreCrThsouoclk
- HSK Accuracy - - System

- -

TAPER No. MODEL No. TAP SIZE LENGTH d1 D1 L 중량(Kg) Unit : mm Morse TaperArbor
COMPENSATION
재고

Comp. Ten.

50A HSK50A-TC12-120 M3~M12 5 15 19 45 120 0.80
63A HSK63A-TC12-120 M3~M12 19 45 120 1.00
HSK63A-TC12-150 M3~M12 5 15 19 45 150 1.70 Tapping Chuck
100A HSK63A-TC24-142 M6~M24 31 63 142 2.40
HSK63A-TC24-172 M6~M24 5 15 31 63 172 2.70 Synchro
HSK100A-TC12-130 M3~M12 19 45 130 4.30
HSK100A-TC12-175 M3~M12 5 20 19 45 175 4.80
HSK100A-TC12-220 M3~M12 19 45 220 5.30
HSK100A-TC24-142 M6~M24 5 20 31 63 142 5.20
HSK100A-TC24-187 M6~M24 31 63 187 6.60
HSK100A-TC38-200 M18~M38 5 15 48 98 200 8.00

5 15 Tapping ER
Chuck
5 15

5 20

5 20

10 25

▶ Tap Adapter 적용범위 154page 참고 Tapping
