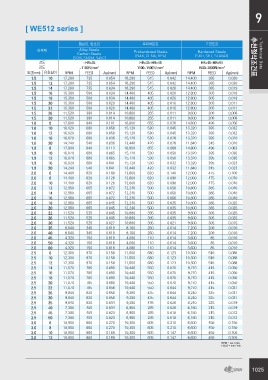

[ WE512 series ] 9
합금강, 탄소강 프리하든강 고경도강 > Technical Data
피삭재 Alloy Steels Prehardened Steels Hardened Steels 추천절삭조건표
Carbon Steels (NAK, CENA, KP4) (SKD, SKT, STAVAX)
경도 (SCM, SNCM, S45C)
HRc35~HRc45 HRc45~HRc55
강도 ~HRc35
외경(mm) 유효길이 ~1100N/mm2 1100~1500N/mm2 1500~2000N/mm2
1.5 10 RPM FEED Ap(mm) RPM FEED Ap(mm) RPM FEED Ap(mm)
1.5 12
1.5 14 17,280 735 0.054 16,290 515 0.042 14,400 385 0.030
1.5 16
1.5 18 17,280 735 0.054 16,290 515 0.042 14,400 385 0.030
1.5 20
1.5 22 17,280 735 0.034 16,290 515 0.026 14,400 385 0.019
1.5 26
1.5 30 15,360 580 0.034 14,480 405 0.026 12,800 305 0.019
1.6 8
1.6 10 15,360 580 0.034 14,480 405 0.026 12,800 305 0.019
1.6 12
1.6 16 15,360 580 0.020 14,480 405 0.016 12,800 305 0.011
1.6 20
1.8 8 15,360 580 0.020 14,480 405 0.016 12,800 305 0.011
1.8 10
1.8 12 11,520 380 0.014 10,860 265 0.011 9,600 200 0.008
1.8 16
1.8 20 11,520 380 0.014 10,860 265 0.011 9,600 200 0.008
2.0 6
2.0 8 17,800 840 0.101 16,800 655 0.078 14,800 490 0.056
2.0 10
2.0 12 16,020 680 0.058 15,120 530 0.045 13,320 395 0.032
2.0 14
2.0 16 16,020 680 0.058 15,120 530 0.045 13,320 395 0.032
2.0 18
2.0 20 16,020 680 0.036 15,120 530 0.028 13,320 395 0.020
2.0 22
2.0 26 14,240 540 0.036 13,440 420 0.028 11,840 315 0.020
2.0 30
2.0 35 17,800 840 0.113 16,800 655 0.088 14,800 490 0.063
2.0 40
2.0 45 16,020 680 0.065 15,120 530 0.050 13,320 395 0.036
2.0 50
2.0 60 16,020 680 0.065 15,120 530 0.050 13,320 395 0.036
2.5 8
2.5 10 16,020 680 0.041 15,120 530 0.032 13,320 395 0.023
2.5 12
2.5 14 14,240 540 0.041 13,440 420 0.032 11,840 315 0.023
2.5 16
2.5 18 14,400 820 0.180 13,600 620 0.140 12,000 475 0.100
2.5 20
2.5 22 14,400 820 0.126 13,600 620 0.098 12,000 475 0.070
2.5 26
2.5 30 14,400 820 0.126 13,600 620 0.098 12,000 475 0.070
2.5 35
2.5 40 12,960 665 0.072 12,240 500 0.056 10,800 385 0.040
2.5 45
2.5 50 12,960 665 0.072 12,240 500 0.056 10,800 385 0.040
3.0 6
3.0 8 12,960 665 0.072 12,240 500 0.056 10,800 385 0.040
3.0 10
3.0 12 12,960 665 0.045 12,240 500 0.035 10,800 385 0.025
12,960 665 0.045 12,240 500 0.035 10,800 385 0.025
11,520 525 0.045 10,880 395 0.035 9,600 305 0.025
11,520 525 0.045 10,880 395 0.035 9,600 305 0.025
11,520 525 0.027 10,880 395 0.021 9,600 305 0.015
8,640 345 0.018 8,160 260 0.014 7,200 200 0.010
8,640 345 0.018 8,160 260 0.014 7,200 200 0.010
4,320 150 0.018 4,080 110 0.014 3,600 85 0.010
4,320 150 0.018 4,080 110 0.014 3,600 85 0.010
4,320 150 0.018 4,080 110 0.014 3,600 85 0.010
12,300 970 0.158 11,600 680 0.123 10,300 510 0.088
12,300 970 0.158 11,600 680 0.123 10,300 510 0.088
12,300 970 0.158 11,600 680 0.123 10,300 510 0.088
11,070 785 0.090 10,440 550 0.070 9,270 415 0.050
11,070 785 0.090 10,440 550 0.070 9,270 415 0.050
11,070 785 0.090 10,440 550 0.070 9,270 415 0.050
11,070 785 0.090 10,440 550 0.070 9,270 415 0.050
11,070 785 0.056 10,440 550 0.044 9,270 415 0.031
9,840 620 0.056 9,280 435 0.044 8,240 325 0.031
9,840 620 0.056 9,280 435 0.044 8,240 325 0.031
9,840 620 0.034 9,280 435 0.026 8,240 325 0.019
7,380 405 0.034 6,960 285 0.026 6,180 215 0.019
7,380 405 0.023 6,960 285 0.018 6,180 215 0.013
7,380 405 0.023 6,960 285 0.018 6,180 215 0.013
10,900 860 0.270 10,300 605 0.210 6,600 450 0.150
10,900 860 0.270 10,300 605 0.210 6,600 450 0.150
10,900 860 0.189 10,300 605 0.147 6,600 450 0.105
10,900 860 0.189 10,300 605 0.147 6,600 450 0.105
RPM = rev. / min.
FEED = mm / min.
