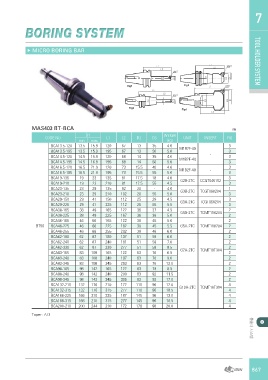

BORING SYSTEM TOOL HOLDER7

▶ MICRO BORING BAR TOOL HOLDER SYSTEM

MAS403 BT-BCA ㎜

CODE NO. D1 L1 L2 D2 D3 WEIGH UNIT INSERT FIG
min max (kg)

BCA13.5-120 13.5 15.9 120 67 13 35 4.0 M1B2F-40 3
BCA13.5-195 13.5 15.9 195 67 13 50 5.0 3
- 3
BCA14.5-120 14.5 16.9 120 68 14 35 4.0 3
BCA14.5-195 14.5 16.9 195 68 14 50 5.0 M1B2E-40

BCA16.5-120 16.5 21.9 120 73 15.5 40 4.0 M1B2F-40 - 3
BCA16.5-195 16.5 21.9 195 73 15.5 55 5.0 3

BCA19-135 19 23 135 81 17.5 18 4.0 G2B-2TC CCGT040102 3
BCA19-210 19 23 210 81 17.5 55 4.5 3

BCA23-135 23 29 135 92 20 - 4.0 G3B-2TC TCGT060204 1
BCA23-210 20 55 5.0 3
23 29 210 102

BCA29-150 29 41 150 112 25 28 4.5 G3A-2TC TCGT060204 3
BCA29-225 29 41 225 112 25 55 5.5 3

BCA38-165 38 49 165 122 36 37 4.5 G5B-2TC TCMT110204 2
BCA38-225 38 49 225 167 36 36 5.0 2

BCA46-165 46 66 165 122 38 45 5.0 2

BT50 BCA46-225 46 66 225 182 38 45 5.5 G5A-2TC TCMT110204 2

BCA46-255 46 66 255 202 38 46 6.0 2

BCA62-180 62 87 180 137 51 59 6.0 2

BCA62-240 62 87 240 181 51 59 7.0 2

BCA62-330 62 87 330 277 51 59 8.5 G7A-2TC TCMT16T304 2
BCA83-165 83 108 165 122 63 76 6.5 2

BCA83-240 83 108 240 197 63 76 9.0 2

BCA83-345 83 108 345 293 63 76 12.0 2

BCA98-165 98 142 165 122 83 79 8.5 2

BCA98-240 98 142 240 200 83 92 11.5 2

BCA98-345 98 142 345 305 83 92 17.0 2

BCA132-210 132 176 210 172 110 96 12.0 G10A-2TC TCMT16T304 4
BCA132-315 132 176 315 277 110 96 18.5 4

BCA166-225 166 210 225 187 145 96 13.0 4

BCA166-315 166 210 315 277 145 96 18.5 4

BCA200-210 200 244 210 172 178 98 20.0 4

Taper : AT3
