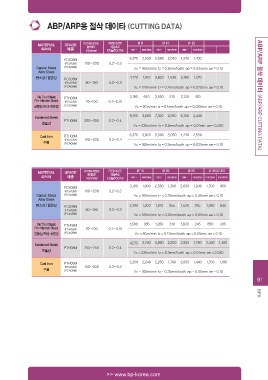

ABP/ARP용 절삭 데이타 (CUTTING DATA)

MATERIAL GRADE CUTTING SPEED FEED RATE Ø8 Ø 10 Ø 12 ABP/ARP 절삭 데이타 (ABP/ARP CUTTING DATA)
피삭재 재종 절삭속도 이송속도 min-1 mm/min min-1 mm/min min-1 mm/min

Carbon Steels VC(m/mina) FZ(㎜/TOOTH)
Alloy Steels
PCS08M 0.2~0.3 6,370 2,550 5,090 2,040 4,240 1,700
탄소강 / 합금강
(PCA12M) 100~200
(PCA08M)
Vc = 160m/min fz = 0.2mm/tooth ap = 0.025mm ae = 0.1D

PCS08M 80~150 0.2~0.3 4,770 1,910 3,820 1,530 3,180 1,270
Vc = 120m/min fz = 0.2mm/tooth ap = 0.025mm ae = 0.1D
(PCA12M)
(PCA08M)

Die Tool Steels PTH08M 70~100 0.1~0.15 3,180 640 2,550 510 2,120 420
Pre-Harden Steels Vc = 80m/min fz = 0.1mm/tooth ap = 0.025mm ae = 0.1D
금형강/프리-하든강 (PCA12M)
(PCA08M)

Hardened Steels PTH08M 200~250 0.2~0.4 9,150 3,660 7,320 2,930 6,100 2,440
조질강 Vc = 230m/min fz = 0.2mm/tooth ap = 0.01mm ae = 0.02D

Cast lron PTH08M 100~200 0.3~0.4 6,370 3,820 5,090 3,050 4,240 2,550
주철 Vc = 160m/min fz = 0.3mm/tooth ap = 0.025mm ae = 0.1D
(PCA12M)
(PCA08M)

MATERIAL GRADE CUTTING SPEED FEED RATE Ø 16 Ø 20 Ø 25 Ø 30(Ø 32)
피삭재 재종 절삭속도 이송속도 min-1 mm/min min-1 mm/min
VC(m/mina) min-1 mm/min mm/min mm/min
Carbon Steels PCS08M FZ(㎜/TOOTH)
Alloy Steels 100~200 3,180 1,600 2,550 1,300 2,050 1,030 1,700 850
(PCA12M) 0.2~0.3
탄소강 / 합금강 (PCA08M) 80~150
Vc = 160m/min fz = 0.25mm/tooth ap = 0.05mm ae = 0.1D
PCS08M
0.2~0.3 2,390 1,200 1,910 955 1,530 765 1,280 640
(PCA12M) Vc = 120m/min fz = 0.25mm/tooth ap = 0.05mm ae = 0.1D
(PCA08M)

Die Tool Steels PTH08M 70~100 0.1~0.15 1,590 385 1,280 310 1,020 245 850 205
Pre-Harden Steels 0.2~0.4 Vc = 80m/min fz = 0.12mm/tooth ap = 0.05mm ae = 0.1D
금형강/프리-하든강 (PCA12M)
(PCA08M) 4,575 2,740 3,660 2,200 2,930 1,760 2,440 1,460
Vc = 230m/min fz = 0.3mm/tooth ap = 0.01mm ae = 0.02D
Hardened Steels PTH08M 200~250
조질강

Cast lron PTH08M 100~200 0.3~0.4 3,200 2,240 2,250 1,790 2,050 1,440 1,700 1,190
주철 Vc = 160m/min fz = 0.35mm/tooth ap = 0.05mm ae = 0.1D
(PCA12M)
(PCA08M)
