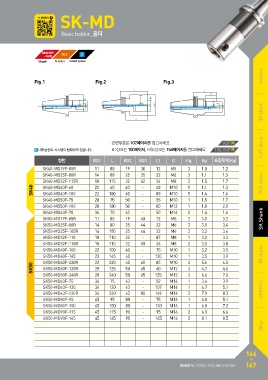

SK-MD

Basic holder_홀더

DIN69871 G6.3
-1A/B

Shank G value Coolant System

Fig.1 Fig.2 Fig.3 Feature

D1 D1 L D1 BT shank
D2 D2 L1 D2
D3
G

내부쿨런트 시스템이 탑재되어 있습니다. •관련부품은 102페이지를 참고하세요. 102P S,ST shank
•BT샹크는 100페이지, HSK샹크는 154페이지를 참고하세요. 100,154P

형번 ØD1 L ØD2 ØD3 L1 G Fig. Kg 포장무게(Kg)

SK40 SK40-MD19F-80R 11 80 19 30 12 M5 3 1.0 1.2 HSK shank
SK40-MD25F-80R 14 80 25 35 22 M6 3 1.1 1.3
SK40-MD32F-115R 18 115 32 42 36 M8 3 1.5 1.7 SSKK sShhaannkk
SK40-MD40F-60 22 60 40 - 40 M10 1 1.1 1.3
SK50 SK40-MD40F-100 22 100 40 - 80 M10 1 1.4 1.6 NT shank
SK40-MD50F-75 28 75 50 - 55 M10 1 1.5 1.7
SK40-MD50F-100 28 100 50 - 80 M12 1 1.8 2.0 cBN/PCD
SK40-MD63F-70 36 70 63 - 50 M16 2 1.4 1.6
SK50-MD19F-85R 11 85 19 40 12 M5 3 3.0 3.3 Other
SK50-MD25F-80R 14 80 25 44 22 M6 3 3.1 3.4
SK50-MD25F-105R 14 105 25 44 22 M6 3 3.3 3.6
SK50-MD32F-110 18 110 32 - 87 M8 1 3.0 3.3
SK50-MD32F-110R 18 110 32 50 36 M8 3 3.5 3.8
SK50-MD40F-100 22 100 40 - 75 M10 1 3.2 3.5
SK50-MD40F-145 22 145 40 - 120 M10 1 3.5 3.9
SK50-MD40F-220R 22 220 40 60 83 M10 3 5.6 6.0
SK50-MD50F-125R 28 125 50 65 60 M12 3 4.3 4.6
SK50-MD50F-240R 28 240 50 65 125 M12 3 6.6 7.0
SK50-MD63F-75 36 75 63 - 52 M16 1 3.6 3.9
SK50-MD63F-130 36 130 63 - 107 M16 1 4.7 5.1
SK50-MD63F-230R 36 230 63 80 149 M16 3 7.9 8.3
SK50-MD80F-95 45 95 80 - 75 M16 1 4.8 5.1
SK50-MD80F-150 45 150 80 - 130 M16 1 6.8 7.2
SK50-MD90F-115 45 115 90 - 95 M16 2 6.3 6.6
SK50-MD90F-165 45 165 90 - 145 M16 2 8.1 8.5
