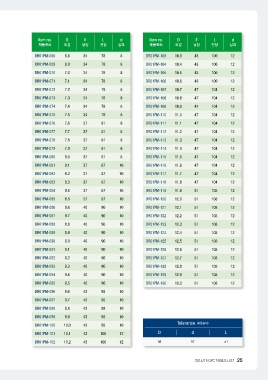

Item no. D ℓ L d Item no. DℓL d

제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크

DR01PM-068 6.8 34 78 8 DR01PM-103 10.3 43 100 12
DR01PM-104 10.4 43 100 12
DR01PM-069 6.9 34 78 8 DR01PM-105 10.5 43 100 12
DR01PM-106 10.6 43 100 12
DR01PM-070 7.0 34 78 8 DR01PM-107 10.7 47 104 12
DR01PM-108 10.8 47 104 12
DR01PM-071 7.1 34 78 8 DR01PM-109 10.9 47 104 12
DR01PM-110 11.0 47 104 12
DR01PM-072 7.2 34 78 8 DR01PM-111 11.1 47 104 12
DR01PM-112 11.2 47 104 12
DR01PM-073 7.3 34 78 8 DR01PM-113 11.3 47 104 12
DR01PM-114 11.4 47 104 12
DR01PM-074 7.4 34 78 8 DR01PM-115 11.5 47 104 12
DR01PM-116 11.6 47 104 12
DR01PM-075 7.5 34 78 8 DR01PM-117 11.7 47 104 12
DR01PM-118 11.8 47 104 12
DR01PM-076 7.6 37 81 8 DR01PM-119 11.9 51 108 12
DR01PM-120 12.0 51 108 12
DR01PM-077 7.7 37 81 8 DR01PM-121 12.1 51 108 12
DR01PM-122 12.2 51 108 12
DR01PM-078 7.8 37 81 8 DR01PM-123 12.3 51 108 12
DR01PM-124 12.4 51 108 12
DR01PM-079 7.9 37 81 8 DR01PM-125 12.5 51 108 12
DR01PM-126 12.6 51 108 12
DR01PM-080 8.0 37 81 8 DR01PM-127 12.7 51 108 12
DR01PM-128 12.8 51 108 12
DR01PM-081 8.1 37 87 10 DR01PM-129 12.9 51 108 12
DR01PM-130 13.0 51 108 12
DR01PM-082 8.2 37 87 10

DR01PM-083 8.3 37 87 10

DR01PM-084 8.4 37 87 10

DR01PM-085 8.5 37 87 10

DR01PM-086 8.6 40 90 10

DR01PM-087 8.7 40 90 10

DR01PM-088 8.8 40 90 10

DR01PM-089 8.9 40 90 10

DR01PM-090 9.0 40 90 10

DR01PM-091 9.1 40 90 10

DR01PM-092 9.2 40 90 10

DR01PM-093 9.3 40 90 10

DR01PM-094 9.4 40 90 10

DR01PM-095 9.5 40 90 10

DR01PM-096 9.6 43 93 10

DR01PM-097 9.7 43 93 10

DR01PM-098 9.8 43 93 10

DR01PM-099 9.9 43 93 10

DR01PM-100 10.0 43 93 10 Tolerance (허용공차)

DR01PM-101 10.1 43 100 12 DdL

DR01PM-102 10.2 43 100 12 h8 h7 ±1

2014/15 DYC TOOLS LIST 25
