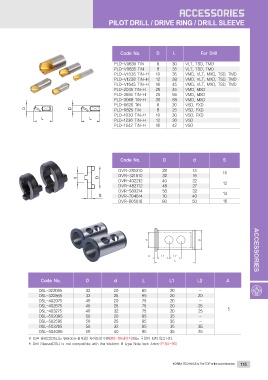

Page 117 - koreatechnics

PILOT DRILL / DRIVE RING / DRILL SLEEVE

Code No. D L For Drill

PLD-V0630 TiN 6 30 VLT, TSD, TMD
PLD-V0835 TiN 8 35 VLT, TSD, TMD
PLD-V1035 TiN-H 10 35 VMD, VLT, MXD, TSD, TMD
PLD-V1238 TiN-H 12 38 VMD, VLT, MXD, TSD, TMD
PLD-V1645 TiN-H 16 45 VMD, VLT, MXD, TSD, TMD
PLD-2045 TiN-H 20 45 VMD, MXD
PLD-2556 TiN-H 25 56 VMD, MXD
PLD-3068 TiN-H 30 68 VMD, MXD
PLD-0620 TiN 6 20 VSD, FXD
PLD-0825 TiN 8 25 VSD, FXD
PLD-1030 TiN-H 10 30 VSD, FXD
PLD-1236 TiN-H 12 36 VSD
PLD-1642 TiN-H 16 42 VSD

Code No. D d S

DVR-281310 28 13 10
DVR-321610 32 16
DVR-402212 40 22 12
DVR-482712 48 27 14
DVR-583214 58 32 16
DVR-704014 70 40
DVR-805016 80 50

ACCESSORIES

Code No. D d L L1 L2 A
5
DSL-322065 32 20 65 20 -
DSL-322565 32 25 65 20 20
DSL-402075 40 20 75 20 -
DSL-402575 40 25 75 20 25
DSL-403275 40 32 75 20 25
DSL-502095 50 20 95 35 -
DSL-502595 50 25 95 35 -
DSL-503295 50 32 95 35 35
DSL-504095 50 40 95 35 35

※ 드릴 슬리브(DSL)는 Weldon-B 타입 사이드락 아버(84~90페이지)와는 호환이 되지 않습니다.

※ Drill Sleeve(DSL) is not compatible with the Weldon-B type Side lock Arbor.(P.84~90)

KOREA TECHNICS is The TOP of the world technics 115
