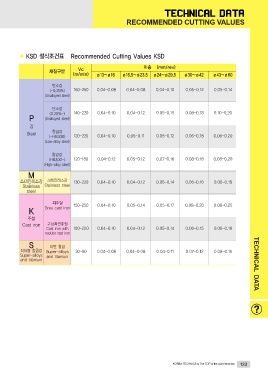

RECOMMENDED CUTTING VALUES

● KSD 절삭조건표 Recommended Cutting Values KSD

재질구분 Vc ø13~ø16 이송 (mm/rev) ø30~ø42 ø43~ø60
(m/min) ø16.5~ø23.5 ø24~ø29.5 0.05-0.12 0.05-0.14

탄소강 160-250 0.04-0.08 0.04-0.08 0.04-0.10
(-0.25%)
(Unalloyed steel)

P 탄소강 140-220 0.04-0.10 0.04-0.12 0.05-0.15 0.08-0.18 0.10-0.20
(0.25%-) 0.04-0.10 0.05-0.11 0.05-0.12
강 (Unalloyed steel)

Steel 합금강 0.06-0.18 0.06-0.20
(-HB300) 120-220
(Low-alloy steel)

합금강 120-180 0.04-0.12 0.05-0.12 0.07-0.16 0.08-0.18 0.08-0.20
(HB300-) 0.04-0.10 0.04-0.12 0.05-0.14
(High-alloy steel) 0.05-0.14 0.05-0.17
0.04-0.12 0.05-0.14
M 0.04-0.08 0.04-0.11
스테인레스강 스테인레스강 130-220 0.06-0.16 0.06-0.18
Stainless Stainless steel
steel

K 회주철 150-250 0.04-0.10 0.08-0.20 0.08-0.25
Grey cast iron 0.04-0.10
주철 0.04-0.08
Cast iron 구상흑연주철 0.06-0.15 0.06-0.18
Cast iron with 100-200
nodular cast iron

S 티탄 합금 TECHNICAL DATA
티타늄 합금강 Super-alloys 30-90 0.07-0.12 0.08-0.15
Super-alloys and titanium
and titanium

KOREA TECHNICS is The TOP of the world technics 123
