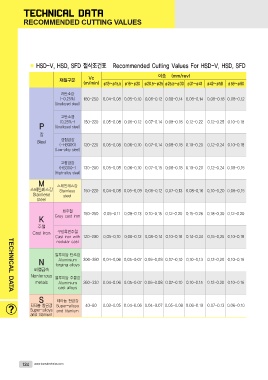

RECOMMENDED CUTTING VALUES

● HSD-V, HSD, SFD 절삭조건표 Recommended Cutting Values For HSD-V, HSD, SFD

재질구분 Vc 이송 (mm/rev)
(m/min) ø13~ø15.5 ø16~ø20 ø20.5~ø25 ø25.5~ø30 ø31~ø41 ø42~ø58 ø59~ø80

저탄소강
(-0.25%) 180-250 0.04-0.08 0.05-0.10 0.06-0.12 0.08-0.14 0.08-0.14 0.08-0.18 0.08-0.12
(Unalloyed steel)

P 고탄소강
(0.25%-) 150-220 0.05-0.08 0.06-0.12 0.07-0.14 0.08-0.18 0.12-0.22 0.12-0.25 0.10-0.18
강 (Unalloyed steel)
경합금강
Steel (-HB300) 120-220 0.05-0.08 0.06-0.10 0.07-0.14 0.08-0.18 0.10-0.20 0.12-0.24 0.10-0.18
(Low-alloy steel)

고합금강
(HB300-) 130-200 0.05-0.08 0.06-0.10 0.07-0.15 0.08-0.18 0.10-0.20 0.12-0.24 0.09-0.15
(High-alloy steel)

M 스테인레스강 150-220 0.04-0.08 0.05-0.09 0.06-0.12 0.07-0.13 0.08-0.16 0.10-0.20 0.08-0.15
Stainless
스테인레스강 steel
Stainless
steel

K 회주철 150-250 0.05-0.11 0.08-0.13 0.10-0.15 0.12-0.20 0.15-0.26 0.18-0.30 0.12-0.20
Grey cast iron 0.05-0.10 0.06-0.12 0.08-0.14 0.10-0.18 0.14-0.24 0.15-0.25 0.10-0.18
주철
Cast iron 구상흑연주철
Cast iron with 120-200
TECHNICAL DATA nodular cast

N 알루미늄 단조강 0.04-0.06 0.05-0.07 0.06-0.08 0.07-0.10 0.10-0.13 0.12-0.20 0.10-0.16
Aluminium 300-380 0.04-0.06 0.05-0.07 0.06-0.08 0.07-0.10 0.10-0.15 0.12-0.20 0.10-0.16
비철금속
forging alloys

Nonferrous 알루미늄 주물강
metals Aluminium 260-330

cast alloys

S 티타늄 합금강
티타늄 합금강 Super-alloys 40-80 0.03-0.05 0.04-0.06 0.04-0.07 0.05-0.08 0.06-0.10 0.07-0.13 0.06-0.10
Super-alloys
and titanium and titanium
