MIRAEPO NC TOTAL TOOLING SYSTEM

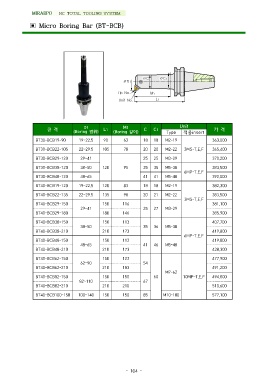

▣ Micro Boring Bar (BT-BCB)
∅D1 ∅C ∅C1
Tip No. M1
Unit No. L1
규격 D1 L1 M1 C C1 Unit 가격
BT30-BCB19-90 (Boring 범위) (Boring 깊이) Type 적용insert
363,000
19~22.5 90 63 18 18 M2-19 365,400
370,200
BT30-BCB22-105 22~29.5 105 78 20 20 M2-22 3MS-T,E,F 383,500
392,000
BT30-BCB29-120 29~41 25 25 M3-29 382,300
383,500
BT30-BCB38-120 38~50 120 95 35 35 M5-38 381,100
385,900
6MP-T,E,F 407,700
419,800
BT30-BCB48-120 48~65 41 41 M5-48 419,800
428,300
BT40-BCB19-120 19~22.5 120 83 18 18 M2-19 477,900
491,200
BT40-BCB22-135 22~29.5 135 98 20 21 M2-22 494,800
510,600
3MS-T,E,F 577,100
BT40-BCB29-150 150 116
29~41 25 27 M3-29
BT40-BCB29-180 180 146
BT40-BCB38-150 150 113
38~50 35 36 M5-38
BT40-BCB38-210 210 173
6MP-T,E,F
BT40-BCB48-150 150 113
48~65 41 46 M5-48
BT40-BCB48-210 210 173
BT40-BCB62-150 150 123
62~90 54
BT40-BCB62-210 210 183
M7-62
BT40-BCB82-150 150 150 60 10MP-T,E,F
82~110 67
BT40-BCB82-210 210 210
BT40-BCB100-150 100~140 150 150 85 M10-100
