MIRAEPO NC TOTAL TOOLING SYSTEM

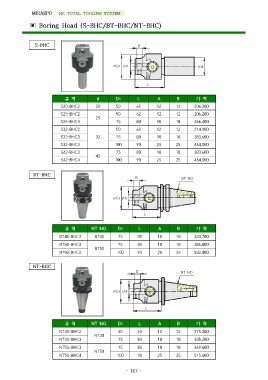

▣ Boring Head (S-BHC/BT-BHC/NT-BHC)
S-BHC B
∅D1 ∅A ∅d
L
규격 d D1 L A B 가격
S20-BHC2 20 50 62 12 12 206,200
S25-BHC2 12 12 206,200
S25-BHC3 50 62 18 18 266,400
S32-BHC2 25 12 12 214,900
S32-BHC3 18 18 283,600
S32-BHC4 75 80 25 25 464,000
S42-BHC3 50 62 18 18 283,600
S42-BHC4 32 75 80 25 25 464,000
100 90
BT-BHC 75 80
42
100 90
B BT NO.
∅D1 ∅A
규격 NT NO. D1 L A B 가격
BT40-BHC3 BT40 75 18 18 343,700
BT50-BHC3 75 L 18 18 386,800
BT50-BHC4 BT50 100 80 25 25 532,800
80
NT-BHC 90 NT NO.
B
∅D1 ∅A
L
규격 NT NO. D1 L A B 가격
NT40-BHC2 NT40 50 62 12 12 275,000
NT40-BHC3 75 80 18 18 335,200
NT50-BHC3 NT50 75 80 18 18 369,600
NT50-BHC4 100 90 25 25 515,600
- 107 -
