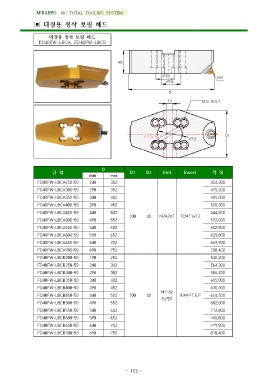

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ 대경용 정삭 보링 헤드
대경용 정삭 보링 헤드
FD40FW-LBCA, FD40FW-LBCB
48
∅D2 Unit
∅D2 M12 BOLT
D
13
P.C.D 66.7 ∅D2 D1
규격 D D1 D2 Unit Insert 가격
min max
FD40FW-LBCA250-50 248 302 454,300
FD40FW-LBCA300-50 298 352
FD40FW-LBCA350-50 348 402 475,200
FD40FW-LBCA400-50 398 452
FD40FW-LBCA450-50 448 502 495,000
FD40FW-LBCA500-50 498 552
FD40FW-LBCA550-50 548 602 520,300
FD40FW-LBCA600-50 598 652
FD40FW-LBCA650-50 648 702 544,500
FD40FW-LBCA700-50 698 752 100 40 M7A2XT TCMT16T3
FD40FW-LBCB200-50 198 252
FD40FW-LBCB250-50 248 302 572,000
FD40FW-LBCB300-50 298 352
FD40FW-LBCB350-50 348 402 602,800
FD40FW-LBCB400-50 398 452
FD40FW-LBCB450-50 448 502 635,800
FD40FW-LBCB500-50 498 552
FD40FW-LBCB550-50 548 602 669,900
FD40FW-LBCB600-50 598 652
FD40FW-LBCB650-50 648 702 708,400
FD40FW-LBCB700-50 698 752
530,200
564,300
585,200
605,000
630,300
100 40 M7-62 10MP-T,E,F 654,500
(닛켄)
682,000
712,800
745,800
779,900
818,400
- 113 -
