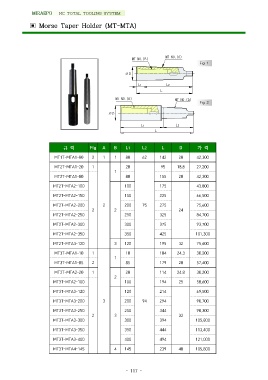

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ Morse Taper Holder (MT-MTA)
MT NO.(B) MT NO.(A)
∅D
Fig 1
L1
MT NO.(B) L2 Fig 2
∅D L
MT NO.(A)
L1 L2
L
규격 Fig A B L1 L2 L D 가격
62
MT1T-MTA1-80 2 1 1 80 75 142 20 42,300
MT2T-MTA1-20 1 20 94 95 18.8 27,200
MT2T-MTA1-80 1
155 20 42,300
80
MT2T-MTA2-100 100 175 43,800
MT2T-MTA2-150 150 225 66,500
MT2T-MTA2-200 2 200 275 75,600
24 84,700
22
325
MT2T-MTA2-250 250
MT2T-MTA2-300 300 375 93,700
MT2T-MTA2-350 350 425 101,300
MT2T-MTA3-120 3 120 195 32 75,600
MT3T-MTA1-10 1 10 104 24.3 30,200
MT3T-MTA1-85 2 1
179 20 57,400
85
MT3T-MTA2-20 1 20 114 24.8 30,200
MT3T-MTA2-100 2
194 25 58,600
100
MT3T-MTA3-120 120 214 69,500
MT3T-MTA3-200 3 200 294 90,700
MT3T-MTA3-250 2 250 344 98,300
MT3T-MTA3-300 3 32
300 394 105,800
MT3T-MTA3-350 350 444 113,400
MT3T-MTA3-400 400 494 121,000
MT3T-MTA4-145 4 145 239 40 105,800
- 117 -
