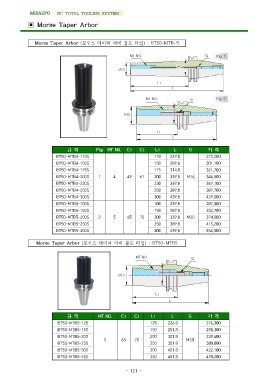

MIRAEPO NC TOTAL TOOLING SYSTEM

▣ Morse Taper Arbor

Morse Taper Arbor (모오스 테이퍼 아버 볼트 타입) : BT50-MTB-S

MT NO. ∅C2 G Fig 1
∅C1 Fig 2

L1 G
L

MT NO.

∅C2

∅C1

L1
L

규격 Fig MT NO. C1 C2 L1 LG 가격
272,200
BT50-MTB4-110S 110 249.8 301,100
321,700
BT50-MTB4-150S 150 289.8 346,500
367,100
BT50-MTB4-175S 175 314.8 387,700
429,000
BT50-MTB4-200S 1 4 49 61 200 339.8 M16 287,300
332,700
BT50-MTB4-230S 230 369.8 374,000
415,200
BT50-MTB4-250S 250 389.8 456,500

BT50-MTB4-300S 300 439.8

BT50-MTB5-100S 100 239.8

BT50-MTB5-150S 150 289.8

BT50-MTB5-200S 2 5 65 70 200 339.8 M20

BT50-MTB5-250S 250 389.8

BT50-MTB5-300S 300 439.8

Morse Taper Arbor (모오스 테이퍼 아버 볼트 타입) : BT50-MTB5

MT NO. G

∅C2

∅C1

L1
L

규격 MT NO. C1 C2 L1 LG 가격
276,300
BT50-MTB5-125 125 226.8 298,300
339,600
BT50-MTB5-150 150 251.8 380,800
422,100
BT50-MTB5-200 5 65 70 200 301.8 M20 470,200
BT50-MTB5-250
250 351.8

BT50-MTB5-300 300 401.8

BT50-MTB5-350 350 451.8

- 121 -
