MIRAEPO NC TOTAL TOOLING SYSTEM

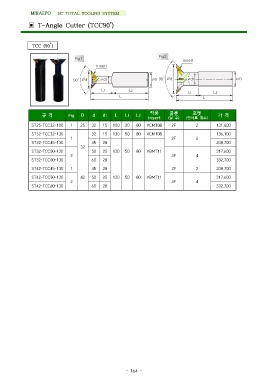

▣ T-Angle Cutter (TCC90°)
TCC (90°)
Fig1 Fig2
insert insert
90 ̊ ∅d ∅d1 ∅D 90 ̊ ∅d ∅d1 ∅D
L1
L2 L1 L2
L L
규격 Fig D d d1 L L1 L2 적용 플롯 포켓 가격
insert 131,600
(날 수) (인서트 개수) 136,100
208,700
ST25-TCC32-100 1 25 32 15 100 20 80 VCMT08 2F 2 317,600
332,700
ST32-TCC32-130 32 15 130 50 80 VCMT08 208,700
317,600
1 2F 2 332,700
4F 4
ST32-TCC45-130 45 28
32
ST32-TCC50-130 50 25 130 50 80 VBMT11
2
ST32-TCC60-130 60 28
ST42-TCC45-130 1 45 28 2F 2
ST42-TCC50-130 42 50 25 130 50 80 VBMT11
2 4F 4
ST42-TCC60-130 60 28
