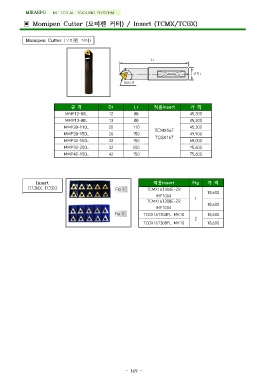

P. 169
MIRAEPO NC TOTAL TOOLING SYSTEM
▣ Momipen Cutter (모미펜 커터) / Insert (TCMX/TCGX)
Momipen Cutter (모미펜 커터)
L1 ∅D1
insert
규격 D1 L1 적용insert 가 격
MMP12-80L 12 80 45,300
MMP13-80L 13 80 45,300
MMP20-110L 20 110 TCMX16T 45,300
MMP20-150L 20 150 49,900
TCGX16T
MMP32-150L 32 150 68,000
MMP32-200L 32 200 75,600
MMP42-150L 42 150 75,600
Insert 적용insert Fig 가 격
(TCMX,TCGX)
Fig 1 TCMX16T304E-ZR
Fig 2 MF1004 10,600
1
TCMX16T308E-ZR
MF1004 10,600
TCGX16T304FL MK10 10,600
2
TCGX16T308FL MK10 10,600
- 169 -
