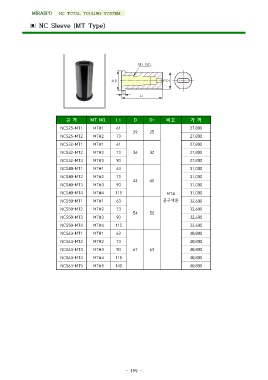

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ NC Sleeve (MT Type)
∅D MT NO.
5 ∅D1
L1
규격 MT NO. L1 D D1 비고 가격
NCS25-MT1 MT#1 61 29 25 27,800
NCS25-MT2 MT#2 73 36 32 27,800
NCS32-MT1 MT#1 61 44 27,800
NCS32-MT2 MT#2 73 40 27,800
NCS32-MT3 MT#3 90 54 MT# 27,800
NCS40-MT1 MT#1 63 31,000
NCS40-MT2 MT#2 73 67 공구사용 31,000
NCS40-MT3 MT#3 90 50 31,000
NCS40-MT4 MT#4 115 31,000
NCS50-MT1 MT#1 63 63 32,600
NCS50-MT2 MT#2 73 32,600
NCS50-MT3 MT#3 90 32,600
NCS50-MT4 MT#4 115 32,600
NCS63-MT1 MT#1 63 40,800
NCS63-MT2 MT#2 73 40,800
NCS63-MT3 MT#3 90 40,800
NCS63-MT4 MT#4 115 40,800
NCS63-MT5 MT#5 140 40,800
