MIRAEPO NC TOTAL TOOLING SYSTEM

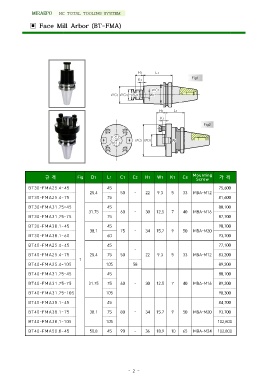

▣ Face Mill Arbor (BT-FMA)
H1 L1 Fig1
K1 Fig2
∅C1 ∅C4 ∅D1 ∅C2
W1
H1 L1
K1
P.C.D ∅C1 ∅D1 W1
101.6
규격 Fig D1 L1 C1 C2 H1 W1 K1 C4 Mounting 가격
Screw
BT30-FM A25.4- 45 45 75,600
BT30-FM A25.4- 75
25.4 50 - 22 9.3 5 33 MBA-M12
75 81,600
BT30-FM A31.75-45 45 80,100
BT30-FM A31.75-75
31.75 60 - 30 12.5 7 40 MBA-M16
75 87,700
BT30-FM A38.1- 45 45 90,700
BT30-FM A38.1- 60
38.1 75 - 34 15.7 9 50 MBA-M20
60 93,700
BT40-FM A25.4- 45 45 77,100
-
BT40-FM A25.4- 75 25.4 75 50 22 9.3 5 33 MBA-M12 83,200
1
BT40-FM A25.4-105 105 58 89,200
BT40-FM A31.75-45 45 80,100
BT40-FM A31.75-75 31.75 75 60 - 30 12.5 7 40 MBA-M16 89,200
BT40-FM A31.75-105 105 98,300
BT40-FM A38.1- 45 45 84,700
BT40-FM A38.1- 75 38.1 75 80 - 34 15.7 9 50 MBA-M20 93,700
BT40-FM A38.1-105 105 102,800
BT40-FM A50.8- 45 50.8 45 90 - 36 18.9 10 65 MBA-M24 102,800
