MIRAEPO NC TOTAL TOOLING SYSTEM H

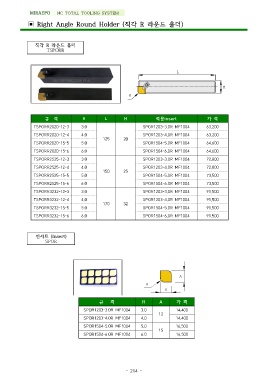

▣ Right Angle Round Holder (직각 R 라운드 홀더)

직각 R 라운드 홀더
TSPORR

L

R

규격 R LH 적용insert 가격
TSPORR2020-12-3 3.0 125 20 SPOR1203-3.0R MF1004 63,200
TSPORR2020-12-4 4.0 150 25 SPOR1203-4.0R MF1004 63,200
TSPORR2020-15-5 5.0 170 32 SPOR1504-5.0R MF1004 64,600
TSPORR2020-15-6 6.0 SPOR1504-6.0R MF1004 64,600
TSPORR2525-12-3 3.0 SPOR1203-3.0R MF1004 72,800
TSPORR2525-12-4 4.0 SPOR1203-4.0R MF1004 72,800
TSPORR2525-15-5 5.0 SPOR1504-5.0R MF1004 73,500
TSPORR2525-15-6 6.0 SPOR1504-6.0R MF1004 73,500
TSPORR3232-12-3 3.0 SPOR1203-3.0R MF1004 91,500
TSPORR3232-12-4 4.0 SPOR1203-4.0R MF1004 91,500
TSPORR3232-15-5 5.0 SPOR1504-5.0R MF1004 91,500
TSPORR3232-15-6 6.0 SPOR1504-6.0R MF1004 91,500

인서트 (Insert)
SPOR

A

R
A

규격 R A 가격

SPOR1203-3.0R MF1004 3.0 12 14,400

SPOR1203-4.0R MF1004 4.0 14,400

SPOR1504-5.0R MF1004 5.0 15 16,500

SPOR1504-6.0R MF1004 6.0 16,500

- 214 -
