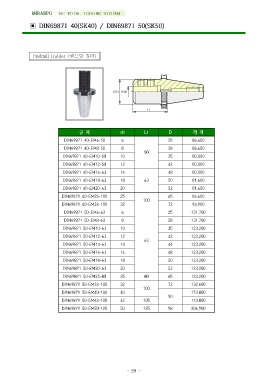

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ DIN69871 40(SK40) / DIN69871 50(SK50)
Endmill Holder (엔드밀 홀더)
∅D ∅d1
L1
규격 d1 L1 D 가격
DIN69871 40-EM6-50 6 25 86,600
DIN69871 40-EM8-50 8 50 28 86,600
DIN69871 40-EM10-50 10 35 80,000
DIN69871 40-EM12-50 12 42 80,000
DIN69871 40-EM16-63 16 48 80,000
DIN69871 40-EM18-63 18 63 50 81,600
DIN69871 40-EM20-63 20 52 81,600
DIN69871 40-EM25-100 25 100 65 86,600
94,900
DIN69871 40-EM32-100 32 72
DIN69871 50-EM6-63 6 25 131,700
DIN69871 50-EM8-63 8 28 131,700
DIN69871 50-EM10-63 10 35 123,200
DIN69871 50-EM12-63 12 63 42 123,200
DIN69871 50-EM14-63 14 44 123,200
DIN69871 50-EM16-63 16 48 123,200
DIN69871 50-EM18-63 18 50 123,200
DIN69871 50-EM20-63 20 52 123,200
DIN69871 50-EM25-80 25 80 65 123,200
DIN69871 50-EM32-100 32 100 72 132,600
DIN69871 50-EM40-100 40 90 173,800
DIN69871 50-EM42-105 42 105 173,800
DIN69871 50-EM50-125 50 125 98 206,900
