P. 75

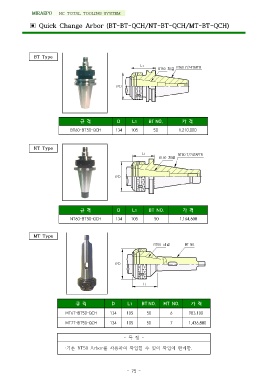

MIRAEPO NC TOTAL TOOLING SYSTEM
▣ Quick Change Arbor (BT-BT-QCH/NT-BT-QCH/MT-BT-QCH)
BT Type
L1 BT50 체결 BT60 7/24TAPER
∅D
규격 D L1 BT NO. 가격
BT60-BT50-QCH 134 105 50 1,210,000
NT Type
L1 NT60 7/24TAPER
BT50 체결
∅D
규격 D L1 BT NO. 가격
NT60-BT50-QCH 134 105 50 1,164,600
MT Type
BT50 체결 MT NO.
∅D
L1
규격 D L1 BT NO. MT NO. 가격
MT6T-BT50-QCH
MT7T-BT50-QCH 134 105 50 6 983,100
134 105 50 7 1,436,800
-특징-
·기존 BT50 Arbor를 사용하여 작업할 수 있어 작업이 편리함.
- 75 -
