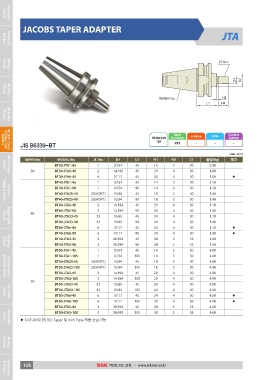

Shrink Fit JACOBS TAPER ADAPTER JTA
Holder
JT.NO.
Milling
Chuck

D1
C2

SK Slim
Chuck

TAPER No. H2
L1 H1

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk JIS B6339-BT JIS B6339 Taper G Value RPM Coolant
- BT Accuracy - - System

AT3 -

Morse Taper Unit : mm

Arbor TAPER No. MODEL No. JT. No. D1 L1 H1 H2 C1 중량(Kg) 재고
30
40 BT30-JTA1-45 1 9.754 45 14 3 30 0.90

50 BT30-JTA2-45 2 14.199 45 20 4 30 1.00

BT30-JTA6-45 6 17.17 45 24 4 30 1.00 ●

Tapping ChuckSynchro BT40-JTA1-45 1 9.754 45 14 3 30 1.10

BT40-JTA1-90 1 9.754 90 14 3 30 1.10

BT40-JTA2S-45 2(SHORT) 13.94 45 18 3 30 1.40

BT40-JTA2S-90 2(SHORT) 13.94 90 18 3 30 1.40

Tapping ER BT40-JTA2-45 2 14.199 45 20 4 30 1.10
Chuck
BT40-JTA2-90 2 14.199 90 20 4 30 1.40

BT40-JTA33-45 33 15.85 45 24 4 30 1.10

BT40-JTA33-90 33 15.85 90 24 4 30 1.40

BT40-JTA6-45 6 17.17 45 24 4 30 1.10 ●

Tapping BT40-JTA6-90 6 17.17 90 24 4 30 1.40 ●
Chuck
BT40-JTA3-45 3 20.599 45 28 5 35 1.20

BT40-JTA3-90 3 20.599 90 28 5 35 1.50

BT50-JTA1-45 1 9.754 45 14 3 30 4.00

Side Lock Arbor BT50-JTA1-105 1 9.754 105 14 3 30 4.40
& End Mill Holder
BT50-JTA2S-45 2(SHORT) 13.94 45 18 3 30 4.00

BT50-JTA2S-105 2(SHORT) 13.94 105 18 3 30 4.40

BT50-JTA2-45 2 14.199 45 20 4 30 4.00

BT50-JTA2-105 2 14.199 105 20 4 30 4.40

Face Mill BT50-JTA33-45 33 15.85 45 24 4 30 4.00
Arbor
BT50-JTA33-105 33 15.85 105 24 4 30 4.40

BT50-JTA6-45 6 17.17 45 24 4 30 4.00 ●

BT50-JTA6-105 6 17.17 105 24 4 30 4.40 ●

BT50-JTA3-45 3 20.599 45 28 5 35 4.00

Shell Mill BT50-JTA3-105 3 20.599 105 28 5 35 4.60
Arbor
▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능
