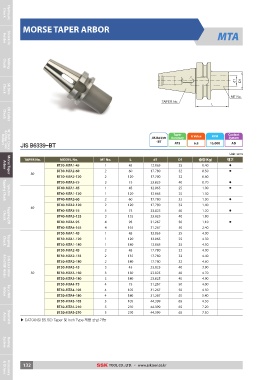

Page 132 - SSK

Hydraulic
Chuck

Shrink Fit MORSE TAPER ARBOR MTA
Holder

Milling
Chuck

d1
D1

SK Slim
Chuck

TAPER No. MT No.
L

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk JIS B6339-BT JIS B6339 Taper G Value RPM Coolant
- BT Accuracy 6.3 15,000 System

AT3 AD

Morse Taper Unit : mm

Arbor TAPER No. MODEL No. MT No. L d1 D1 중량(Kg) 재고
30 BT30-MTA1-45 1 45 12.065
40 BT30-MTA2-60 2 60 17.780 25 0.40 ●
BT30-MTA2-120 2 120 17.780
50 BT30-MTA3-75 3 75 23.825 32 0.50 ●
BT40-MTA1-45 1 45 12.065
BT40-MTA1-120 1 120 12.065 32 0.60
BT40-MTA2-60 2 60 17.780
Tapping ChuckSynchro BT40-MTA2-120 2 120 17.780 40 0.70 ●
BT40-MTA3-75 3 75 23.825
BT40-MTA3-135 3 135 23.825 25 1.00 ●
BT40-MTA4-95 4 95 31.267
BT40-MTA4-165 4 165 31.267 25 1.30
BT50-MTA1-45 1 45 12.065
BT50-MTA1-120 1 120 12.065 32 1.00 ●
BT50-MTA1-180 1 180 12.065
Tapping ER BT50-MTA2-45 2 45 17.780 32 1.40
Chuck BT50-MTA2-135 2 135 17.780
BT50-MTA2-180 2 180 17.780 40 1.20 ●
BT50-MTA3-45 3 45 23.825
BT50-MTA3-150 3 150 23.825 40 1.80
BT50-MTA3-180 3 180 23.825
BT50-MTA4-75 4 75 31.267 50 1.10 ●
BT50-MTA4-105 4 105 31.267
BT50-MTA4-180 4 180 31.267 50 2.40
BT50-MTA5-105 5 105 44.399
Tapping BT50-MTA5-210 5 210 44.399 25 4.00
Chuck BT50-MTA5-270 5 270 44.399
25 4.30

25 4.30

32 4.00

Side Lock Arbor 32 4.40
& End Mill Holder
32 4.60

40 3.90

40 4.70

40 4.90

Face Mill 50 4.00
Arbor
50 4.50

50 5.40

65 4.50

65 7.20

Shell Mill 65 7.50
Arbor
▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능

Boring
System

Accessory 132 TOOL CO., LTD. www.ssktool.co.kr
