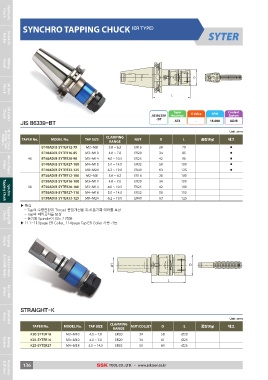

Shrink Fit SYNCHRO TAPPING CHUCK (ERTYPE) SYTER
Holder

Milling
Chuck

SK Slim d1 L
Chuck D

ER Collet JIS B6339-BT D JIS B6339 Taper G Value RPM Coolant
Chuck - BT Accuracy - 15,000 System
AD/B
AT3

N&COHDtorhilldel reCTrhsouoclk Unit : mm

TAPER No. MODEL No. TAP SIZE CLAMPING NUT D L 중량(Kg) 재고
RANGE
Arbor Morse Taper BT40AD/B-SYTER12-79 M2~M8 3.0 ~ 6.2 ER16 28 79 ●
BT40AD/B-SYTER16-85 M3~M10 4.0 ~ 7.0 ER20 34 85 ●
40 BT40AD/B-SYTER20-90 M3~M14 4.0 ~ 10.5 ER25 42 90 ●
BT40AD/B-SYTER27-100 M4~M18 5.0 ~ 14.0 ER32 50 100 ●
BT40AD/B-SYTER33-125 M8~M24 6.2 ~ 19.0 ER40 63 125 ●
BT50AD/B-SYTER12-100 M2~M8 3.0 ~ 6.2 ER16 28 100
Tapping ChuckSynchro BT50AD/B-SYTER16-100 M3~M10 4.0 ~ 7.0 ER20 34 100
50 BT50AD/B-SYTER20-100 M3~M14 4.0 ~ 10.5 ER25 42 100
BT50AD/B-SYTER27-110 M4~M18 5.0 ~ 14.0 ER32 50 110
BT50AD/B-SYTER33-125 M8~M24 6.2 ~ 19.0 ER40 63 125

Tapping ER ▶ 특징
Chuck - Tap의 수명연장과 Thread 품질개선을 위해 동기화 에러를 보상
- Tap의 피치공차를 보상
- 동기화 Spindle이 있는 기계용

▶ 111~113page ER Collet, 114page Tap ER Collet 사용 가능

Tapping
Chuck

Side Lock Arbor
& End Mill Holder

L

Face Mill
Arbor

Shell Mill STRAIGHT-K
Arbor
Unit : mm

TAPER No. MODEL No. TAP SIZE CLAMPING NUT/COLLET D L 중량(Kg) 재고
RANGE
Boring K20-SYTER16 M3~M10 4.0 ~ 7.0 ER20 34 58 Ø20
System K25-SYTER16 M3~M10 4.0 ~ 7.0 ER20 34 61 Ø25
K25-SYTER27 M4~M18 5.0 ~ 14.0 ER32 50 69 Ø25

Accessory 136 TOOL CO., LTD. www.ssktool.co.kr
