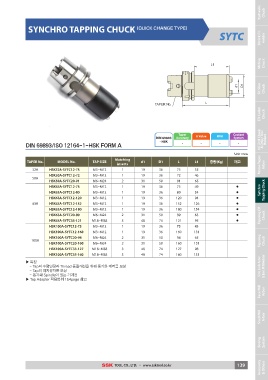

Page 139 - SSK

Hydraulic
Chuck

SYNCHRO TAPPING CHUCK (QUICKCHANGETYPE) SYTC Shrink Fit
Holder

L1 Milling
Chuck

d1 SK Slim
D1 Chuck

TAPER No. L

ER Collet
Chuck

DIN 69893/ISO 12164-1-HSK FORM A DIN 69893 Taper G Value RPM Coolant N&COHDtroilhlledreCrThsouoclk
- HSK Accuracy - - System

- -

Unit : mm Morse Taper

TAPER No. MODEL No. TAP SIZE Matching d1 D1 L L1 중량(Kg) 재고 Arbor
32A inserts
50A HSK32A-SYTC12-75 M3~M12 1 19 36 75 55 ● Synchro Tapping Chuck
HSK50A-SYTC12-72 M3~M12 1 19 36 72 46 ●
63A HSK50A-SYTC20-91 M6~M24 2 31 50 91 65 ● Tapping ER
HSK63A-SYTC12-75 M3~M12 1 19 36 75 49 ● Chuck
100A HSK63A-SYTC12-80 M3~M12 1 19 36 80 54 ●
HSK63A-SYTC12-120 M3~M12 1 19 36 120 94 ●
HSK63A-SYTC12-152 M3~M12 1 19 36 152 126 ●
HSK63A-SYTC12-180 M3~M12 1 19 36 180 154
HSK63A-SYTC20-89 M6~M24 2 31 50 89 63 Tapping
HSK63A-SYTC33-121 M18~M38 3 48 74 121 95 Chuck
HSK100A-SYTC12-75 M3~M12 1 19 36 75 43
HSK100A-SYTC12-160 M3~M12 1 19 36 160 131 Side Lock Arbor
HSK100A-SYTC20-94 M6~M24 2 31 50 94 65 & End Mill Holder
HSK100A-SYTC20-160 M6~M24 2 31 50 160 131
HSK100A-SYTC33-127 M18~M38 3 48 74 127 98
HSK100A-SYTC33-160 M18~M38 3 48 74 160 131

▶ 특징
- Tap의 수명연장과 Thread 품질개선을 위해 동기화 에러를 보상
- Tap의 피치공차를 보상
- 동기화 Spindle이 있는 기계용

▶ Tap Adapter 적용범위 154page 참고

Face Mill
Arbor

Shell Mill
Arbor

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 139 Accessory
