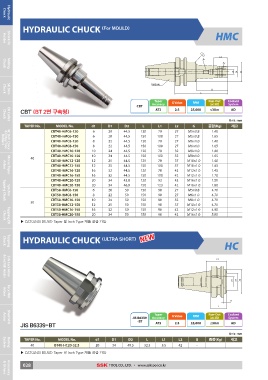

Page 28 - SSK

Hydraulic
Chuck

Shrink Fit HYDRAULIC CHUCK HMC
Holder

Milling
Chuck

SK Slim
Chuck

CBT Taper G Value RPM Run-Out Coolant
Accuracy (at 3D) System

ER Collet AT3 2.5 25,000 ≤3Um AD
Chuck
Unit : mm

N&COHDtorhilldel reCTrhsouoclk TAPER No. MODEL No. d1 D1 D2 L L1 L2 G (Kg)
40
ArborMorse Taper 50 CBT40-HMC6-120 6 20 44.5 120 70 27 M5×0.8 1.40
CBT40-HMC6-150 6 20 44.5 150 100 27 M5×0.8 1.65
Tapping ChuckSynchro CBT40-HMC8-120 8 22 44.5 120 70 27 M6×1.0 1.40
CBT40-HMC8-150 8 22 44.5 150 100 27 M6×1.0 1.65
Tapping ER CBT40-HMC10-120 10 24 44.5 120 70 32 M8×1.0 1.40
Chuck CBT40-HMC10-150 10 24 44.5 150 100 32 M8×1.0 1.65
CBT40-HMC12-120 12 25 44.5 120 70 37 M10×1.0 1.40
CBT40-HMC12-150 12 25 44.5 150 100 37 M10×1.0 1.65
CBT40-HMC16-120 16 32 44.5 120 70 42 M12×1.0 1.45
CBT40-HMC16-150 16 32 44.5 150 100 42 M12×1.0 1.70
CBT40-HMC20-120 20 34 43.8 120 93 42 M16×1.0 1.50
CBT40-HMC20-150 20 34 46.9 150 123 42 M16×1.0 1.80
CBT50-HMC6-150 6 20 50 150 90 27 M5×0.8 4.70
CBT50-HMC8-150 8 22 50 150 90 27 M6×1.0 4.70
CBT50-HMC10-150 10 24 50 150 90 32 M8×1.0 4.70
CBT50-HMC12-150 12 25 50 150 90 37 M10×1.0 4.70
CBT50-HMC16-150 16 32 50 150 90 42 M12×1.0 4.90
CBT50-HMC20-150 20 34 50 150 90 42 M16×1.0 5.00

Tapping HYDRAULIC CHUCK NEW HC
Chuck
L2
Side Lock Arbor
& End Mill Holder

d1
D1
D2

Face Mill
Arbor

Shell Mill JIS B6339 Taper G Value RPM L L1
Arbor - BT Accuracy 2.5 25,000
Run-Out Coolant
AT3 (at 3D) System
≤3Um
AD

Unit : mm

Boring TAPER No. MODEL No. d1 D1 D2 L L1 L2 G (Kg)
System 40 BT40-HC20-32.5 20 34 49.5 32.5 5.5 42 -
