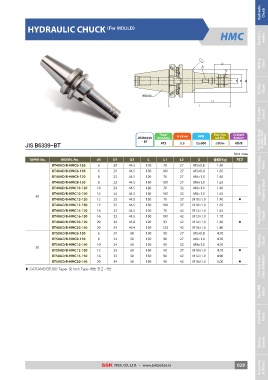

Page 29 - SSK

Hydraulic
Chuck

HYDRAULIC CHUCK HMC Shrink Fit
Holder

Milling
Chuck

SK Slim
Chuck

ER Collet
Chuck

JIS B6339 Taper G Value RPM Run-Out Coolant N&COHDtroilhlledreCrThsouoclk
- BT Accuracy 2.5 25,000 (at 3D) System
≤3Um AD/B
AT3

Unit : mm Morse Taper

TAPER No. MODEL No. d1 D1 D2 L L1 L2 G (Kg) Arbor
40 BT40AD/B-HMC6-120 6 20 44.5 120 70 27 M5×0.8 1.40
50 BT40AD/B-HMC6-150 6 20 44.5 150 100 27 M5×0.8 1.65 Synchro Tapping Chuck
BT40AD/B-HMC8-120 8 22 44.5 120 70 27 M6×1.0 1.40
BT40AD/B-HMC8-150 8 22 44.5 150 100 27 M6×1.0 1.65 Tapping ER
BT40AD/B-HMC10-120 10 24 44.5 120 70 32 M8×1.0 1.40 Chuck
BT40AD/B-HMC10-150 10 24 44.5 150 100 32 M8×1.0 1.65
BT40AD/B-HMC12-120 12 25 44.5 120 70 37 M10×1.0 1.40 Tapping
BT40AD/B-HMC12-150 12 25 44.5 150 100 37 M10×1.0 1.65 Chuck
BT40AD/B-HMC16-120 16 32 44.5 120 70 42 M12×1.0 1.45
BT40AD/B-HMC16-150 16 32 44.5 150 100 42 M12×1.0 1.70 Side Lock Arbor
BT40AD/B-HMC20-120 20 34 43.8 120 93 42 M16×1.0 1.50 & End Mill Holder
BT40AD/B-HMC20-150 20 34 46.9 150 123 42 M16×1.0 1.80
BT50AD/B-HMC6-150 6 20 50 150 90 27 M5×0.8 4.70
BT50AD/B-HMC8-150 8 22 50 150 90 27 M6×1.0 4.70
BT50AD/B-HMC10-150 10 24 50 150 90 32 M8×1.0 4.70
BT50AD/B-HMC12-150 12 25 50 150 90 37 M10×1.0 4.70
BT50AD/B-HMC16-150 16 32 50 150 90 42 M12×1.0 4.90
BT50AD/B-HMC20-150 20 34 50 150 90 42 M16×1.0 5.00

Face Mill
Arbor

Shell Mill
Arbor

Boring
System

TOOL CO., LTD. www.ssktool.co.kr 029 Accessory
