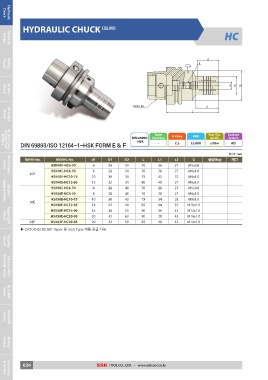

Shrink Fit HYDRAULIC CHUCK (SLIM) HC
Holder

Milling
Chuck

SK Slim
Chuck

ER Collet
Chuck

N&COHDtorhilldel reCTrhsouoclk DIN 69893/ISO 12164-1-HSK FORM E & F DIN 69893 Taper G Value RPM Run-Out Coolant
- HSK Accuracy 2.5 25,000 (at 3D) System
≤3Um
- AD

ArborMorse Taper TAPER No. MODEL No. d1 D1 D2 L L1 L2 G 중량(Kg) Unit : mm
40E HSK40E-HC6-70 6 26 34 70 36 27 M5x0.8 재고
HSK40E-HC8-70 8 28 34 70 36 27 M6x1.0
Tapping ChuckSynchro 50E HSK40E-HC10-75 10 30 34 75 42 32 M6x1.0
63F HSK40E-HC12-80 12 32 34 80 48 37 M6x1.0
Tapping ER HSK50E-HC6-70 6 26 40 70 28 27 M5x0.8
Chuck HSK50E-HC8-70 8 28 40 70 28 27 M6x1.0
HSK50E-HC10-75 10 30 40 75 34 32 M8x1.0
HSK50E-HC12-85 12 32 40 85 44 37 M10x1.0
HSK50E-HC16-90 16 38 53 90 30 42 M12x1.0
HSK50E-HC20-90 20 42 60 90 29 42 M16x1.0
HSK63F-HC20-85 20 42 50 85 46 42 M12x1.0

▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능
