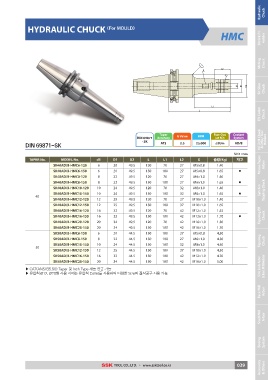

HYDRAULIC CHUCK (ForMOULD) HMC Shrink Fit
Holder

Milling
Chuck

SK Slim
Chuck

ER Collet
Chuck

DIN 69871-SK DIN 69871 Taper G Value RPM Run-Out Coolant N&COHDtroilhlledreCrThsouoclk
- SK Accuracy 2.5 25,000 (at 3D) System
≤3Um AD/B
AT3

TAPER No. MODEL No. d1 D1 D2 L L1 L2 G 중량(Kg) Unit : mm Morse TaperArbor
40 SK40AD/B-HMC6-120 6 20 49.5 120 70 27 M5×0.8 1.40 재고
50 SK40AD/B-HMC6-150 6 20 49.5 150 100 27 M5×0.8 1.65 ● Synchro Tapping Chuck
SK40AD/B-HMC8-120 8 22 49.5 120 70 27 M6×1.0 1.40 ●
SK40AD/B-HMC8-150 8 22 49.5 150 100 27 M6×1.0 1.65 ● Tapping ER
SK40AD/B-HMC10-120 10 24 49.5 120 70 32 M8×1.0 1.40 Chuck
SK40AD/B-HMC10-150 10 24 49.5 150 100 32 M8×1.0 1.65 ●
SK40AD/B-HMC12-120 12 25 49.5 120 70 37 M10×1.0 1.40
SK40AD/B-HMC12-150 12 25 49.5 150 100 37 M10×1.0 1.65 Tapping
SK40AD/B-HMC16-120 16 32 49.5 120 70 42 M12×1.0 1.45 Chuck
SK40AD/B-HMC16-150 16 32 49.5 150 100 42 M12×1.0 1.70
SK40AD/B-HMC20-120 20 34 49.5 120 70 42 M16×1.0 1.50 Side Lock Arbor
SK40AD/B-HMC20-150 20 34 49.5 150 100 42 M16×1.0 1.70 & End Mill Holder
SK50AD/B-HMC6-150 6 20 44.5 150 100 27 M5×0.8 4.50
SK50AD/B-HMC8-150 8 22 44.5 150 100 27 M6×1.0 4.50
SK50AD/B-HMC10-150 10 24 44.5 150 100 32 M8×1.0 4.50
SK50AD/B-HMC12-150 12 25 44.5 150 100 37 M10×1.0 4.50
SK50AD/B-HMC16-150 16 32 44.5 150 100 42 M12×1.0 4.70
SK50AD/B-HMC20-150 20 34 44.5 150 100 42 M16×1.0 5.00

▶ CAT(ANSI B5.50) Taper 및 Inch Type 제품 공급 가능
▶ 유압척 Ø12, Ø20형 사용 시에는 유압척 Collet를 사용하여 다양한 Size의 절삭공구 사용 가능
