Page 84 - SSK

Hydraulic
Chuck

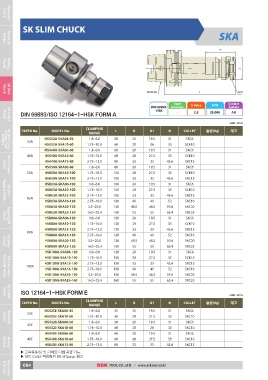

Shrink Fit SK SLIM CHUCK SKHSAK
Holder
H

Milling D
Chuck

SK Slim TAPER No L NUT
Chuck

ER Collet DIN 69893/ISO 12164-1-HSK FORM A DIN 69893 Taper G Value RPM Coolant
Chuck - HSK Accuracy 2.5 25,000 System

- AD

Unit : mm

N&COHDtorhilldel reCTrhsouoclk TAPER No. MODEL No. CLAMPING L D D1 H COLLET 중량(Kg) 재고
RANGE

32A HSK32A-SKA06-50 1.8~6.0 50 20 19.5 31 SKC6
HSK32A-SKA10-60 1.75~10.0 60
28 26 35 SCK10

HSK40A-SKA06-60 1.8~6.0 60 20 19.5 31 SKC6

Morse Taper 40A HSK40A-SKA10-60 1.75~10.0 60 28 27.5 35 SCK10

Arbor HSK40A-SKA13-80 2.75~13.0 80 33 33 43.6 SKC13

HSK50A-SKA06-80 1.8~6.0 80 20 19.5 31 SKC6

50A HSK50A-SKA10-100 1.75~10.0 100 28 27.5 35 SCK10

Tapping Chuck HSK50A-SKA13-100 2.75~13.0 100 33 33 43.6 SKC13

Synchro HSK63A-SKA06-100 1.8~6.0 100 20 19.5 31 SKC6

HSK63A-SKA10-100 1.75~10.0 100 28 27.5 35 SCK10

63A HSK63A-SKA13-100 2.75~13.0 100 33 33 43.6 SKC13
HSK63A-SKA16-120 2.75~16.0 120 40 40 52 SKC16

Tapping ER HSK63A-SKA20-120 3.5~20.0 120 48.5 48.5 59.6 SKC20
Chuck
HSK63A-SKA25-150 16.0~25.4 150 55 55 63.4 SKC25

HSK80A-SKA06-120 1.8~6.0 120 20 19.5 31 SKC6

HSK80A-SKA10-120 1.75~10.0 120 28 27.5 35 SCK10

80A HSK80A-SKA13-120 2.75~13.0 120 33 33 43.6 SKC13
HSK80A-SKA16-120 2.75~16.0 120 40 40 52 SKC16
Tapping
Chuck HSK80A-SKA20-130 3.5~20.0 130 48.5 48.5 59.6 SKC20

HSK80A-SKA25-150 16.0~25.4 150 55 55 63.4 SKC25

HSK100A-SKA06-120 1.8~6.0 120 20 19.5 31 SKC6

Side Lock Arbor HSK100A-SKA10-150 1.75~10.0 150 28 27.5 35 SCK10
& End Mill Holder
100A HSK100A-SKA13-150 2.75~13.0 150 33 33 43.6 SKC13
HSK100A-SKA16-150 2.75~16.0 150 40 40 52 SKC16

HSK100A-SKA20-150 3.5~20.0 150 48.5 48.5 59.6 SKC20

HSK100A-SKA25-160 16.0~25.4 160 55 55 63.4 SKC25

Face Mill ISO 12164-1-HSK FORM E Unit : mm
Arbor 재고

TAPER No. MODEL No. CLAMPING L D D1 H COLLET 중량(Kg)
25E RANGE 45 20 19.5 31
Shell Mill 32E HSK25E-SKA06-45 1.8~6.0 50 28 21.5 35 SKC6
Arbor HSK25E-SKA10-50 1.75~10.0 50 20 19.5 31 SKC10
40E HSK32E-SKA06-50 1.8~6.0 60 28 26 35 SKC6
Boring HSK32E-SKA10-60 1.75~10.0 60 20 19.5 31 SKC10
System HSK40E-SKA06-60 1.8~6.0 60 28 27.5 35 SKC6
HSK40E-SKA10-60 1.75~10.0 80 33 33 43.6 SKC10
HSK40E-SKA13-80 2.75~13.0 SKC13
TOOL CO., LTD. www.ssktool.co.kr
▶ 고속용(HS) 및 라체트 타입 공급 가능
▶ SKC Collet 적용범위 86-87page 참고

Accessory 084
