9

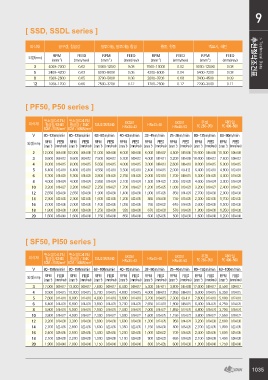

[ SSD, SSDL series ]

피삭재 공구강, 합금강 알루미늄, 알루미늄 합금 황동, 청동 엑포시, 레진 > Technical Data

외경(mm) RPM FEED RPM FEED RPM FEED RPM FEED 추천절삭조건표
(mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev)
3
5 4000~7000 0.02 10000~12000 0.03 7000~10000 0.02 9000~12000 0.08
8 2400~4200 0.03 6000~8000 0.05 4200~6000 0.04 5400~7200 0.08
12 1500~2600 0.05 3700~5000 0.08 2600~3700 0.08 3400~4500 0.09
1000~1700 0.06 2500~3200 0.12 1700~2500 0.12 2200~3000 0.11

[ PF50, P50 series ]

피삭재 탄소강(C<0.3%) 탄소강(C≥0.3%) SUJ2·SUS440 SKD61 HRc43~48 SKD11 주철 덕타일
합금강/SS400 합금강 / S50C HRc34~43 HRc48~53 FC 250~350 FC 400~500
SCM ~710N/mm2 SCM ~1.060N/mm2

V 80~125m/min 80~125m/min 63~80m/min 40~63m/min 32~45m/min 25~36m/min 80~125m/min 63~90m/min

외경(mm) RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED
(mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev)

2 12,000 0.06~0.08 12,000 0.06~0.08 11,000 0.06~0.08 8,000 0.06~0.08 6,000 0.05~0.07 4,500 0.03~0.06 15,000 0.06~0.08 11,000 0.06~0.08
3 9,600 0.09~0.12 9,600 0.09~0.12 7,500 0.09~0.12 5,300 0.09~0.12 4,000 0.07~0.11 3,200 0.05~0.09 10,000 0.09~0.12 7,600 0.09~0.12
4 8,000 0.10~0.15 8,000 0.10~0.15 5,650 0.10~0.15 4,000 0.10~0.15 3,000 0.08~0.13 2,600 0.06~0.10 8,000 0.10~0.15 6,000 0.10~0.15
5 6,400 0.12~0.18 6,400 0.12~0.18 4,550 0.12~0.18 3,300 0.12~0.18 2,400 0.10~0.15 2,000 0.8~0.12 6,400 0.12~0.18 4,800 0.12~0.18
6 5,300 0.14~0.20 5,300 0.14~0.20 3,800 0.14~0.20 2,750 0.14~0.20 2,000 0.12~0.18 1,700 0.09~0.15 5,300 0.14~0.20 4,000 0.14~0.20
8 4,000 0.16~0.24 4,000 0.16~0.24 2,850 0.16~0.24 2,100 0.16~0.24 1,500 0.14~0.22 1,300 0.12~0.20 4,000 0.16~0.24 3,000 0.16~0.24
10 3,200 0.18~0.27 3,200 0.18~0.27 2,250 0.18~0.27 1,700 0.18~0.27 1,200 0.15~0.25 1,000 0.13~0.23 3,200 0.18~0.27 2,400 0.18~0.27
12 2,650 0.20~0.30 2,650 0.20~0.30 1,900 0.20~0.30 1,400 0.20~0.30 1,000 0.17~0.26 850 0.14~0.24 2,700 0.20~0.30 2,000 0.20~0.30
14 2,300 0.22~0.35 2,300 0.22~0.35 1,600 0.22~0.35 1,200 0.22~0.35 860 0.18~0.30 730 0.15~0.26 2,300 0.22~0.35 1,700 0.22~0.35
16 2,000 0.25~0.36 2,000 0.25~0.36 1,400 0.25~0.36 1,050 0.25~0.36 760 0.20~0.32 640 0.16~0.26 2,000 0.25~0.36 1,500 0.25~0.36
18 1,800 0.28~0.38 1,800 0.28~0.38 1,250 0.28~0.38 920 0.28~0.38 670 0.23~0.33 570 0.18~0.28 1,800 0.28~0.38 1,350 0.28~0.38
20 1,600 0.30~0.40 1,600 0.30~0.40 1,150 0.30~0.40 850 0.30~0.40 600 0.25~0.35 500 0.20~0.30 1,600 0.30~0.40 1,200 0.30~0.40

[ SF50, PI50 series ]

피삭재 탄소강(C<0.3%) 탄소강(C≥0.3%) SUJ2·SUS440 SKD61 HRc43~48 SKD11 주철 덕타일
합금강/SS400 합금강 / S50C HRc34~43 HRc48~53 FC 250~350 FC 400~500
SCM ~710N/mm2 SCM ~1.060N/mm2

V 80~150m/min 80~150m/min 63~100m/min 40~70m/min 32~50m/min 25~40m/min 80~150m/min 63~100m/min

외경(mm) RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED
(mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev) (mm-1) (mm/rev)

3 12,000 0.09~0.12 13,000 0.09~0.12 7,600 0.09~0.12 6,400 0.09~0.12 5,300 0.07~0.11 3,800 0.05~0.09 12,000 0.09~0.12 8,500 0.09~0.12
4 9,500 0.10~0.15 10,000 0.10~0.15 5,700 0.10~0.15 4,800 0.10~0.15 4,000 0.08~0.13 2,950 0.06~0.10 9,000 0.10~0.15 6,350 0.10~0.15
5 7,600 0.12~0.18 8,000 0.12~0.18 4,600 0.12~0.18 3,800 0.12~0.18 3,200 0.10~0.15 2,300 0.8~0.12 7,600 0.12~0.18 5,100 0.12~0.18
6 6,400 0.14~0.20 6,600 0.14~0.20 3,800 0.14~0.20 3,200 0.14~0.20 2,650 0.12~0.18 1,900 0.09~0.15 6,400 0.14~0.20 4,250 0.14~0.20
8 4,800 0.16~0.24 5,000 0.16~0.24 2,900 0.16~0.24 2,400 0.16~0.24 2,000 0.14~0.22 1,450 0.12~0.20 4,800 0.16~0.24 3,200 0.16~0.24
10 3,800 0.18~0.27 4,000 0.18~0.27 2,300 0.18~0.27 1,900 0.18~0.27 1,600 0.15~0.25 1,150 0.13~0.23 3,800 0.18~0.27 2,550 0.18~0.27
12 3,200 0.20~0.30 3,300 0.20~0.30 1,900 0.20~0.30 1,600 0.20~0.30 1,300 0.17~0.26 950 0.14~0.24 3,200 0.20~0.30 2,100 0.20~0.30
14 2,700 0.22~0.35 2,800 0.22~0.35 1,600 0.22~0.35 1,350 0.22~0.35 1,150 0.18~0.30 800 0.15~0.26 2,700 0.22~0.35 1,800 0.22~0.35
16 2,400 0.25~0.36 2,500 0.25~0.36 1,400 0.25~0.36 1,200 0.25~0.36 1,000 0.20~0.32 700 0.16~0.26 2,400 0.25~0.36 1,600 0.25~0.36
18 2,100 0.28~0.38 2,200 0.28~0.38 1,300 0.28~0.38 1,100 0.28~0.38 900 0.23~0.33 650 0.18~0.28 2,100 0.28~0.38 1,400 0.28~0.38
20 1,900 0.30~0.40 2,000 0.30~0.40 1,150 0.30~0.40 1,000 0.30~0.40 800 0.25~0.35 600 0.20~0.30 1,900 0.30~0.40 1,250 0.30~0.40

1035
