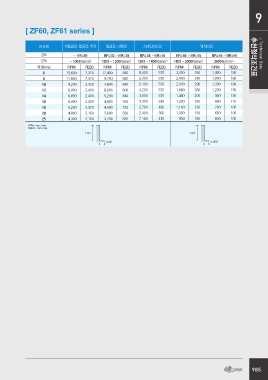

P. 985
9
[ ZF60, ZF61 series ]
피삭재 비합금강, 합금강, 주철 합금강, 내열강 스테인리스강 열처리강 > Technical Data
경도 ~ HRc30 HRc30 ~ HRc38 HRc38 ~ HRc45 HRc45 ~ HRc55 HRc55 ~ HRc65 추천절삭조건표
강도
~ 1000N/mm2 1000 ~ 1200N/mm2 1200 ~ 1400N/mm2 1400 ~ 2000N/mm2 2000N/mm2~
외경(mm)
6 RPM FEED RPM FEED RPM FEED RPM FEED RPM FEED
8
10 15,600 2,320 12,400 840 8,400 570 3,400 260 2,400 190
12
14 11,600 2,320 9,200 840 6,300 570 2,400 240 1,800 180
16
18 9,200 2,320 7,600 840 5,100 570 2,000 290 1,300 190
20
25 8,000 2,400 6,000 800 4,200 570 1,680 260 1,200 190
RPM = rev. / min. 6,800 2,400 5,200 840 3,600 570 1,400 200 900 130
FEED = mm / min.
6,000 2,400 4,800 760 3,300 510 1,200 160 800 110
5,200 2,320 4,400 720 2,700 420 1,100 150 700 100
4,800 2,160 3,600 560 2,400 360 1,000 150 660 100
4,300 2,150 3,200 620 2,160 410 900 160 600 100
1.5D 1.0D
0.3D 0.05D
