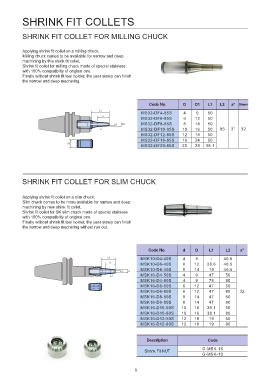

SHRINK FIT COLLETS

SHRINK FIT COLLET FOR MILLING CHUCK

Applying shrink fit collet on a milling chuck.
Milling chuck comes to be available for narrow and deep
machining by this shink fit collet.
Shrink fit collet for milling chuck made of special stainless
with 100% compatiblity of original one.
Finally without shrink fit tool holder, the user surely can finish
the narrow and deep machining.

Code No. D D1 L1 L2 a° Shank

MS32-DF4-85S 4 9 50

MS32-DF6-85S 6 12 50

MS32-DF8-85S 8 14 50

MS32-DF10-85S 10 16 50 85 3° 32

MS32-DF12-85S 12 18 50

MS32-DF16-85S 16 24 50

MS32-DF20-85S 20 29 38.1

SHRINK FIT COLLET FOR SLIM CHUCK

Applying shrink fit collet on a slim chuck.
Slim chuck comes to be more available for narrow and deep
machining by new shink fit collet.
Shrink fit collet for SK slim chuck made of special stainless
with 100% compatiblity of original one.
Finally without shrink fit tool holder, the user surely can finish
the narrow and deep machining without run out.

Code No. d D L1 L2 a°

MSK10-D4-40S 49 - 40.5

MSK10-D6-40S 6 12 28.6 40.5

MSK10-D8-40S 8 14 19 40.5

MSK16-D4-50S 4 9 47 50

MSK16-D4-80S 4 9 78 80

MSK16-D6-50S 6 12 47 50

MSK16-D6-80S 6 12 47 80 32

MSK16-D8-50S 8 14 47 50

MSK16-D8-80S 8 14 47 80

MSK16-D10-50S 10 16 38.1 50

MSK16-D10-80S 10 16 38.1 80

MSK16-D12-50S 12 18 19 50

MSK16-D12-80S 12 18 19 80

Description Code
Shrink Fit NUT
G-MSK-16
G-MSK-10

6
