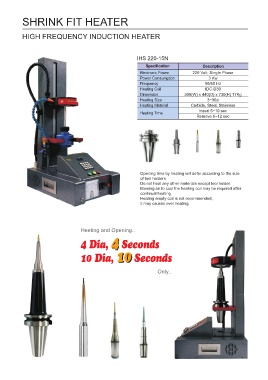

SHRINK FIT HEATER
HIGH FREQUENCY INDUCTION HEATER
IHS 220-15N Description
Specification 220 Volt, Single Phase
3 Kw
Electronic Power
Power Consumption 50/60 Hz
Frequency IDC-D30
Heating Coil 300(W) x 440(D) x 730(H) 17Kg
Dimension
Heating Size 3~30ø
Heating Material Carbide, Steel, Stainless
Heating Time Insert 5~10 sec
Remove 6~12 sec
Opening time by heating will defer according to the size
of tool holders.
Do not heat any other materials except tool holder.
Blowing air to cool the heating coil may be required after
continual heating.
Heating empty coil is not recommended,
it may causes over heating.
Heeting and Opening..
4 Dia, 4 Seconds
10 Dia, 10 Seconds
Only..
