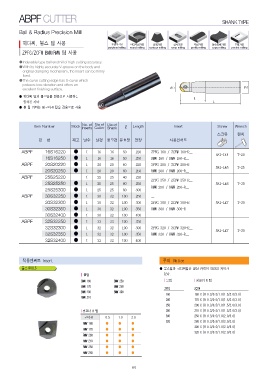

ABPF CUTTER SHANK TYPE

Ball & Radius Precision Mill

히다찌, 불스 팁 사용 주변부가공 바닥곡면가공 외곽가공 경사가공 곡면가공 연속복제가공 포켓가공
ZPFG/ZCFW BMW/RMW 팁 사용 profile milling
peripheral milling round milling contour milling ramp milling copy milling pocket milling

●Indexable type ball endmill of high cutting accuracy.
●With its highly accurate V-groove on the body and

original clamping mechanism, the insert can be firmly
fixed.
●The curve cutting edge has S-curve which
prduces less vibration and offers an
excellent finishing surface.

● 히다찌 팁과 불스팁을 전용으로 사용하는

정삭용 카타

● 볼 팁 카타는 평코너-R 팁을 겸용으로 사용

Item Number Stock No. of Dia of Dia of ℓ Length Insert Screw Wrench
Inserts Cutter Shank 스크류 렌치

형번 재고 날수 날경 생크경 유효장 전장 사용인서트

ABPF 16S16220 ● 1 16 16 50 220 ZPFG 160 / ZCFW 160-R__ 581-144 T-20
ABPF 16S16250 ● 1 16 16 50 250 BMW 160 / RMW 160-R__ 581-145 T-25
ABPF 20S20220 ● 1 20 20 60 220 ZPFG 200 / ZCFW 200-R__ 581-146 T-30
ABPF 20S20250 ● 1 20 20 60 250 BMW 200 / RMW 200-R__
ZPFG 250 / ZCFW 250-R__ 581-147 T-30
ABPF 25S25220 - 1 25 25 40 220 BMW 250 / RMW 250-R__
__
25S25250 ● 1 25 25 80 250 ZPFG 300 / ZCFW 300-R 581-147 T-30
25S25300 ● 1 25 25 80 300 BMW 300 / RMW 300-R__
30S32250 ● 1 30 32 100 250
30S32300 ● 1 30 32 100 300 ZPFG 320 / ZCFW 320-R__
30S32350 ● 1 30 32 100 350 BMW 320 / RMW 320-R__
30S32400 ● 1 30 32 100 400
32S32250 ● 1 32 32 100 250
32S32300 ● 1 32 32 100 300
32S32350 ● 1 32 32 100 350
32S32400 ● 1 32 32 100 400

적용인써트 Insert 주의 Notice

불스 BULLS ● 불스팁과 히다찌팁은 생산 규격이 약간의 차이가
있다.
| 볼팁
BMW 160 BMW 250 | 볼팁 | 평코너 R 팁
BMW 170 BMW 260
BMW 200 BMW 300 ZPFG ZCFW
BMW 210 160 160 X (R 0.3/0.5/1.0/1.5/2.0/3.0)
200 170 X (R 0.3/0.5/1.0/1.5/2.0/3.0)
| 평코너 R 팁 250 200 X (R 0.3/0.5/1.0/1.5/2.0/3.0)
260 210 X (R 0.3/0.5/1.0/1.5/2.0/3.0)
코너-R 0.5 1.0 2.0 300 250 X (R 0.3/0.5/1.0/2.0/3.0)
320 260 X (R 0.3/0.5/1.0/2.0/3.0)
RMW 160 ●● ●
300 X (R 0.3/0.5/1.0/2.0/3.0)
RMW 170 ●● ● 320 X (R 0.3/0.5/1.0/2.0/3.0)

RMW 200 ●● ●

RMW 210 ●● ●

RMW 250 ●● ●

RMW 260 ●● ●
