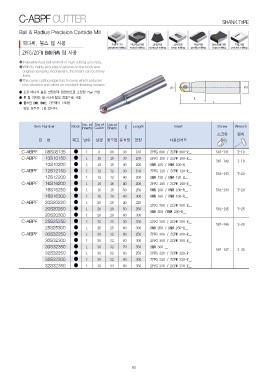

C-ABPF CUTTER SHANK TYPE

Ball & Radius Precision Carbide Mill

히다찌, 불스 팁 사용 주변부가공 바닥곡면가공 외곽가공 경사가공 곡면가공 연속복제가공 포켓가공
ZPFG/ZCFW BMW/RMW 팁 사용 profile milling
peripheral milling round milling contour milling ramp milling copy milling pocket milling

●Indexable flute ball endmill of high cutting accuracy.
●With its highly accurate V-groove on the body and

original clamping mechanism, the insert can be firmly
fixed.
●The curve cutting edge has S-curve which prduces
less vibration and offers an excellent finishing surface.

● 초경 바디의 높은 안정성과 정밀성으로 초정밀 가공 실현

● 볼 팁 카타는 평코너-R 팁을 겸용으로 사용

● 불스팁 BMW, RMW는 가격대비 신뢰성

있는 품질을 구현 합니다.

Item Number Stock No. of Dia of Dia of ℓ Length Insert Screw Wrench
Inserts Cutter Shank 스크류 렌치

형번 재고 날수 날경 생크경 유효장 전장 사용인서트

C-ABPF 08S08135 ● 1 8 08 30 135 ZPFG 080 / ZCFW 080-R__ 581-141 T-10
C-ABPF 10S10150 ● 1 10 10 30 150 ZPFG 100 / ZCFW 100-R__ 581-142 T-10
BMW 100 / RMW 100-R__
10S10200 ● 1 10 10 40 200 ZPFG 120 / ZCFW 120-R__ 581-143 T-20
C-ABPF 12S12150 ● 1 12 12 30 150 BMW 120 / RMW 120-R__
ZPFG 160 / ZCFW 160-R__ 581-144 T-20
12S12200 ● 1 12 12 40 200 BMW 160 / RMW 160-R__
C-ABPF 16S16200 ● 1 16 16 40 200 BMW 160 / RMW 160-R__ 581-145 T-25
581-146 T-30
16S16250 ● 1 16 16 50 250 ZPFG 200 / ZCFW 200-R__
16S16300 ● 1 16 16 60 300 BMW 200 /RMW 200-R__ 581-147 T-30
C-ABPF 20S20220 ● 1 20 20 40 220
20S20250 ● 1 20 20 50 250 ZPFG 250 / ZCFW 250-R__
20S20300 ● 1 20 20 60 300 BMW 250 / RMW 250-R__
C-ABPF 25S25250 ● 1 25 25 50 250 ZPFG 300 / ZCFW 300-R__
25S25300 ● 1 25 25 60 300 ZPFG 300 / ZCFW 300-R__
C-ABPF 30S32250 ● 1 30 32 60 250 BMW 300 __
30S32300 ● 1 30 32 60 300 ZPFG 320 / ZCFW 320-R__
30S32350 ● 1 30 32 70 350 ZPFG 320 / ZCFW 320-R__
32S32250 ● 1 30 32 60 250 ZPFG 320 / ZCFW 320-R__
32S32300 ● 1 30 32 60 300
32S32350 ● 1 30 32 60 350

65
