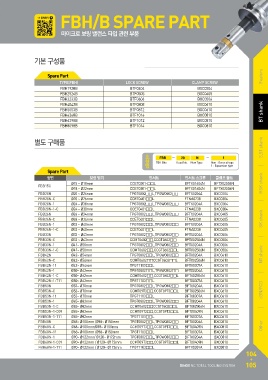

FBH/B SPARE PART

마이크로 보링 밸런스 타입 관련 부품

기본 구성품 LOCK SCREW CLAMP SCREW Feature

Spare Part BTF0404 BXC0304 BBTTsshaannkk
BTF0505 BXC0405
Type(FBH) BTF0606 BXC0506
FBH1920B BTF0808 BXC0610
FBH2526B BTF0812 BXC0610
FBH3233B BTF1016 BXC0810
FBH4042B BTF1012 BXC0810
FBH5053B BTF1014 BXC0810
FBH6368B
FBH6398B
FBH8098B

별도 구매품 S,ST shank

호 FBB 20 N 1
칭 FBH Bite
법 Head No. New Type Non : General type
1 : Expansion type

Spare Part HSK shank

형번 보링 범위 인서트 인서트 스크류 클램프 볼트 SK shank

FBB15C Ø15 ~ Ø18mm CCET0301-□□L BFTX01604N BFTX02506N NT shank
Ø18 ~ Ø22mm CCET0301-□□L BFTX01604N BFTX02506N
FBB20N Ø20 ~ Ø26mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0304 cBN/PCD
FBB20N-C Ø20 ~ Ø26mm CCET0401□□L FTNA0238 BXC0304
FBB20N-1 Ø24 ~ Ø30mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0304 Other
FBB20N-1-C Ø24 ~ Ø30mm CCET0401□□L FTNA0238 BXC0304
FBB26N Ø26 ~ Ø34mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0405
FBB26N-C Ø26 ~ Ø34mm CCET0401□□L FTNA0238 BXC0405
FBB26N-1 Ø32 ~ Ø40mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0405
FBB26N-1-C Ø32 ~ Ø40mm CCET0401□□L FTNA0238 BXC0405
FBB33N Ø33 ~ Ø43mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0506
FBB33N-C Ø33 ~ Ø43mm CCMT0602□□,CCGT0602□□ BFTX02506N BXC0506
FBB33N-1 Ø41~ Ø50mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0506
FBB33N-1-C Ø41~ Ø50mm CCMT0602□□,CCGT0602□□L BFTX02506N BXC0506
FBB42N Ø42~ Ø54mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0610
FBB42N-C Ø42~ Ø54mm CCMT0602□□CCGT0602□□L BFTX02506N BXC0610
FBB42N-11 Ø42~ Ø54mm TPGT1103□□L BFTX0307A BXC0610
FBB42N-1 Ø50~ Ø62mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0610
FBB42N-1-C Ø50~ Ø62mm CCMT0602□□,CCGT0602□□L BFTX02506N BXC0610
FBB42N-1-T11 Ø50~ Ø62mm TPGT1103□□L BFTX0307A BXC0610
FBB53N Ø53~ Ø70mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0610
FBB53N-C Ø53~ Ø70mm CCMT09T3□□,CCGT09T3□□L BFTX02506N BXC0610
FBB53N-11 Ø53~ Ø70mm TPGT1103□□L BFTX0307A BXC0610
FBB53N-1 Ø65~ Ø82mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0610
FBB53N-1-C Ø65~ Ø82mm CCMT0602□□CCGT0602□□L BFTX02506N BXC0610
FBB53N-1-C09 Ø65~ Ø82mm CCMT09T3□□,CCGT09T3□□L BFTX0409N BXC0610
FBB53N-1-T11 Ø65~ Ø82mm TPGT1103□□L BFTX0307A BXC0610
FBB68N Ø68~ Ø100mm /Ø98~ Ø150mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0810
FBB68N-C Ø68~ Ø100mm/Ø98~ Ø150mm CCMT09T3□□,CCGT09T3□□L BFTX0409N BXC0810
FBB68N-11 Ø68~ Ø100mm /Ø98~ Ø150mm TPGT1103□□L BFTX0307A BXC0810
FBB68N-1 Ø90~ Ø122mm/ Ø120~ Ø172mm TPGT0802□□L,TPGW0802□□ BFTX0204A BXC0810
FBB68N-1-C09 Ø90~ Ø122mm / Ø120~ Ø172mm CCMT09T3□□,CCGT09T3□□L BFTX0409N BXC0810
FBB68N-1-T11 Ø90~ Ø122mm / Ø120~ Ø172mm TPGT1103□□L BFTX0307A BXC0810
