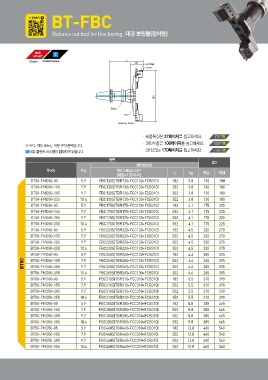

BT-FBC

Balance cut tool for fine boring_대경 보링툴(정삭용)

MAS 90
403-BT 99

Shank Coolant System

※ 바디, 헤드 세트는 개별 구매 품목입니다. •제품특징은 37페이지를 참고하세요. 37P
내부 쿨런트 시스템이 탑재되어 있습니다. •관련부품은 108페이지를 참고하세요. 108P
•SK샹크는 170페이지를 참고하세요. 170P

BT50 Body Kg 형번 ØD
정삭(FBC)
BT50-FMD50-85 5.9 L Kg 최소 최대
BT50-FMD50-155 7.9 TBC HEAD SET
BT50-FMD50-205 9.7 (레일+카트리지) 182 3.8 130 180
BT50-FMD50-255 10.4 FBC130S(TBR130+FCC130+FCB310) 252 3.8 130 180
BT50-FMD50-85 5.9 FBC130S(TBR130+FCC130+FCB310) 302 3.8 130 180
BT50-FMD50-155 7.9 FBC130S(TBR130+FCC130+FCB310) 352 3.8 130 180
BT50-FMD50-205 9.7 FBC130S(TBR130+FCC130+FCB310) 182 4.1 175 225
BT50-FMD50-255 10.4 FBC175S(TBR175+FCC130+FCB310) 252 4.1 175 225
BT50-FMD50-85 5.9 FBC175S(TBR175+FCC130+FCB310) 302 4.1 175 225
BT50-FMD50-155 7.9 FBC175S(TBR175+FCC130+FCB310) 352 4.1 175 225
BT50-FMD50-205 9.7 FBC175S(TBR175+FCC130+FCB310) 182 4.5 220 270
BT50-FMD50-255 10.4 FBC220S(TBR220+FCC130+FCB310) 252 4.5 220 270
BT50-FMD50-85 5.9 FBC220S(TBR220+FCC130+FCB310) 302 4.5 220 270
BT50-FMD50-155 7.9 FBC220S(TBR220+FCC130+FCB310) 352 4.5 220 270
BT50-FMD50-205 9.7 FBC220S(TBR220+FCC130+FCB310) 182 4.6 265 315
BT50-FMD50-255 10.4 FBC265S(TBR265+FCC130+FCB310) 252 4.6 265 315
BT50-FMD50-85 5.9 FBC265S(TBR265+FCC130+FCB310) 302 4.6 265 315
BT50-FMD50-155 7.9 FBC265S(TBR265+FCC130+FCB310) 352 4.6 265 315
BT50-FMD50-205 9.7 FBC265S(TBR265+FCC130+FCB310) 182 5.5 310 390
BT50-FMD50-255 10.4 FBC310S(TBR310+FCC310+FCB310) 252 5.5 310 390
BT50-FMD50-85 5.9 FBC310S(TBR310+FCC310+FCB310) 302 5.5 310 390
BT50-FMD50-155 7.9 FBC310S(TBR310+FCC310+FCB310) 352 5.5 310 390
BT50-FMD50-205 9.7 FBC310S(TBR310+FCC310+FCB310) 182 5.8 385 465
BT50-FMD50-255 10.4 FBC385S(TBR385+FCC310+FCB310) 252 5.8 385 465
BT50-FMD50-85 5.9 FBC385S(TBR385+FCC310+FCB310) 302 5.8 385 465
BT50-FMD50-155 7.9 FBC385S(TBR385+FCC310+FCB310) 352 5.8 385 465
BT50-FMD50-205 9.7 FBC385S(TBR385+FCC310+FCB310) 182 12.8 460 540
BT50-FMD50-255 10.4 FBC460S(TBR460+FCC310+FCB310) 252 12.8 460 540
FBC460S(TBR460+FCC310+FCB310) 302 12.8 460 540
FBC460S(TBR460+FCC310+FCB310) 352 12.8 460 540
FBC460S(TBR460+FCC310+FCB310)
