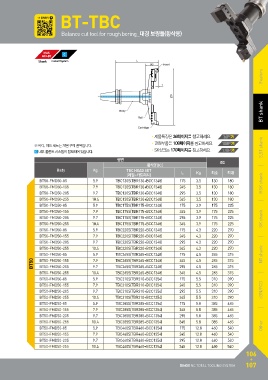

Page 108 - dain

BT-TBC

Balance cut tool for rough boring_대경 보링툴(황삭용)

MAS
403-BT
Shank Coolant System

Feature

BBTTsshaannkk

※ 바디, 헤드 세트는 개별 구매 품목입니다. •제품특징은 36페이지를 참고하세요. 36P S,ST shank
내부 쿨런트 시스템이 탑재되어 있습니다. •관련부품은 108페이지를 참고하세요. 108P
•SK샹크는 170페이지를 참고하세요. 170P

Body Kg 형번 ØD HSK shank
황삭(TBC)
BT50-FMD50-85 5.9 L Kg 최소 최대 SK shank
BT50-FMD50-155 7.9 TBC HEAD SET
BT50 BT50-FMD50-205 9.7 (레일+카트리지) 175 3.5 130 180 NT shank
BT50-FMD50-255 10.4 TBC130S(TBR130+BCC1348) 245 3.5 130 180
BT50-FMD50-85 5.9 TBC130S(TBR130+BCC1348) 295 3.5 130 180 cBN/PCD
BT50-FMD50-155 7.9 TBC130S(TBR130+BCC1348) 345 3.5 130 180
BT50-FMD50-205 9.7 TBC130S(TBR130+BCC1348) 175 3.9 175 225 Other
BT50-FMD50-255 10.4 TBC175S(TBR175+BCC1348) 245 3.9 175 225
BT50-FMD50-85 5.9 TBC175S(TBR175+BCC1348) 295 3.9 175 225
BT50-FMD50-155 7.9 TBC175S(TBR175+BCC1348) 345 3.9 175 225
BT50-FMD50-205 9.7 TBC175S(TBR175+BCC1348) 175 4.3 220 270
BT50-FMD50-255 10.4 TBC220S(TBR220+BCC1348) 245 4.3 220 270
BT50-FMD50-85 5.9 TBC220S(TBR220+BCC1348) 295 4.3 220 270
BT50-FMD50-155 7.9 TBC220S(TBR220+BCC1348) 345 4.3 220 270
BT50-FMD50-205 9.7 TBC220S(TBR220+BCC1348) 175 4.5 265 315
BT50-FMD50-255 10.4 TBC265S(TBR265+BCC1348) 245 4.5 265 315
BT50-FMD50-85 5.9 TBC265S(TBR265+BCC1348) 295 4.5 265 315
BT50-FMD50-155 7.9 TBC265S(TBR265+BCC1348) 345 4.5 265 315
BT50-FMD50-205 9.7 TBC265S(TBR265+BCC1348) 175 5.5 310 390
BT50-FMD50-255 10.4 TBC310S(TBR310+BCC1354) 245 5.5 310 390
BT50-FMD50-85 5.9 TBC310S(TBR310+BCC1354) 295 5.5 310 390
BT50-FMD50-155 7.9 TBC310S(TBR310+BCC1354) 345 5.5 310 390
BT50-FMD50-205 9.7 TBC310S(TBR310+BCC1354) 175 5.8 385 465
BT50-FMD50-255 10.4 TBC385S(TBR385+BCC1354) 245 5.8 385 465
BT50-FMD50-85 5.9 TBC385S(TBR385+BCC1354) 295 5.8 385 465
BT50-FMD50-155 7.9 TBC385S(TBR385+BCC1354) 345 5.8 385 465
BT50-FMD50-205 9.7 TBC385S(TBR385+BCC1354) 175 12.8 460 540
BT50-FMD50-255 10.4 TBC460S(TBR460+BCC1354) 245 12.8 460 540
TBC460S(TBR460+BCC1354) 295 12.8 460 540
TBC460S(TBR460+BCC1354) 345 12.8 460 540
TBC460S(TBR460+BCC1354)

DINOX NC TOTAL TOOLING SYSTEM 106
107
