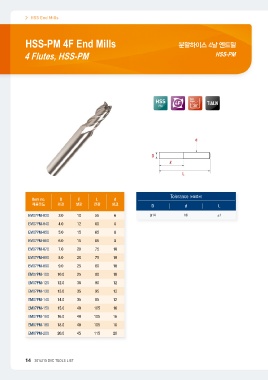

HSS End Mills 분말하이스 4날 엔드밀
HSS-PM
HSS-PM 4F End Mills

4 Flutes, HSS-PM

HSS 4F Helix TiALN
PM Angle

30°

Item no. D ℓ L d Tolerance (허용공차)

제품코드 외경 날장 전장 샹크 DdL

EM07PM-030 3.0 10 55 6 js14 h6 ±1

EM07PM-040 4.0 12 60 8

EM07PM-050 5.0 15 65 8

EM07PM-060 6.0 15 65 8

EM07PM-070 7.0 20 75 10

EM07PM-080 8.0 20 75 10

EM07PM-090 9.0 25 80 10

EM07PM-100 10.0 25 80 10

EM07PM-120 12.0 30 90 12

EM07PM-130 13.0 35 95 12

EM07PM-140 14.0 35 95 12

EM07PM-150 15.0 40 105 16

EM07PM-160 16.0 40 105 16

EM07PM-180 18.0 40 105 16

EM07PM-200 20.0 45 115 20

14 2014/15 DYC TOOLS LIST
