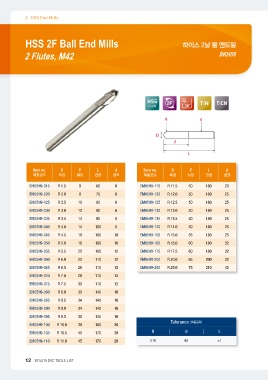

Page 14 - dyc

HSS End Mills 하이스 2날 볼 엔드밀
SKH59
HSS 2F Ball End Mills

2 Flutes, M42

HSS 2FCo 8% Helix TiN TiCN
Angle

30°

Item no. DℓL d Item no. D ℓ L d

제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크

EM05H9-015 R 1.5 8 60 6 EM05H9-115 R 11.5 50 180 20

EM05H9-020 R 2.0 8 70 6 EM05H9-120 R 12.0 50 180 25

EM05H9-025 R 2.5 10 80 6 EM05H9-125 R 12.5 50 180 25

EM05H9-030 R 3.0 12 90 6 EM05H9-130 R 13.0 50 180 25

EM05H9-035 R 3.5 14 90 8 EM05H9-135 R 13.5 50 180 25

EM05H9-040 R 4.0 14 100 8 EM05H9-140 R 14.0 50 180 25

EM05H9-045 R 4.5 18 100 10 EM05H9-150 R 15.0 55 180 25

EM05H9-050 R 5.0 18 100 10 EM05H9-160 R 16.0 60 180 32

EM05H9-055 R 5.5 22 100 12 EM05H9-175 R 17.5 60 180 32

EM05H9-060 R 6.0 22 110 12 EM05H9-200 R 20.0 65 200 32

EM05H9-065 R 6.5 26 110 12 EM05H9-250 R 25.0 75 210 42

EM05H9-070 R 7.0 26 110 12

EM05H9-075 R 7.5 30 110 12

EM05H9-080 R 8.0 30 140 16

EM05H9-085 R 8.5 34 140 16

EM05H9-090 R 9.0 34 140 16

EM05H9-095 R 9.5 38 140 16

EM05H9-100 R 10.0 38 160 20 Tolerance (허용공차)

EM05H9-105 R 10.5 45 170 20 DdL

EM05H9-110 R 11.0 45 170 20 h10 h6 ±1
