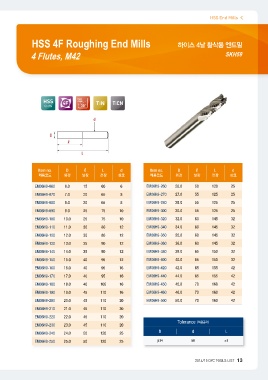

HSS 4F Roughing End Mills HSS End Mills

4 Flutes, M42 하이스 4날 황삭용 엔드밀
SKH59

HSS 4FCo 8% Helix TiN TiCN
Angle

30°

Item no. D ℓ L d Item no. D ℓ L d

제품코드 외경 날장 전장 샹크 제품코드 외경 날장 전장 샹크

EM06H9-060 6.0 15 60 6 EM06H9-260 26.0 50 120 25

EM06H9-070 7.0 20 65 8 EM06H9-270 27.0 55 125 25

EM06H9-080 8.0 20 65 8 EM06H9-280 28.0 55 125 25

EM06H9-090 9.0 25 75 10 EM06H9-300 30.0 55 125 25

EM06H9-100 10.0 25 75 10 EM06H9-320 32.0 60 145 32

EM06H9-110 11.0 30 80 12 EM06H9-340 34.0 60 145 32

EM06H9-120 12.0 30 80 12 EM06H9-350 35.0 60 145 32

EM06H9-130 13.0 35 90 12 EM06H9-360 36.0 60 145 32

EM06H9-140 14.0 35 90 12 EM06H9-380 38.0 65 150 32

EM06H9-150 15.0 40 95 12 EM06H9-400 40.0 65 150 32

EM06H9-160 16.0 40 95 16 EM06H9-420 42.0 65 155 42

EM06H9-170 17.0 40 95 16 EM06H9-440 44.0 65 155 42

EM06H9-180 18.0 40 105 16 EM06H9-450 45.0 70 160 42

EM06H9-190 19.0 45 110 16 EM06H9-460 46.0 70 160 42

EM06H9-200 20.0 45 110 20 EM06H9-500 50.0 70 160 42

EM06H9-210 21.0 45 110 20

EM06H9-220 22.0 45 110 20 Tolerance (허용공차)

EM06H9-230 23.0 45 110 20 Dd

EM06H9-240 24.0 50 120 25 js14 h6 L

EM06H9-250 25.0 50 120 25 ±1

2014/15 DYC TOOLS LIST 13
