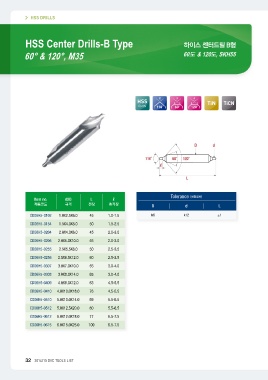

HSS DRILLS 하이스 센터드릴 B형
60도 & 120도, SKH55
HSS Center Drills-B Type
60° & 120°, M35
HSS 118° 60° TiN TiCN
Co 8% 120°
Item no. dXD L ℓ Tolerance (허용공차)
제품코드 규격 전장 촉기장 DdL
CD06H5-0102 1.0X2.5X6.0 45 1.0-1.5 h8 k12 ±1
CD06H5-0154 1.5X4.0X8.0 50 1.5-2.5
CD06H5-0204 2.0X4.0X6.0 45 2.0-3.0
CD06H5-0205 2.0X5.0X10.0 55 2.0-3.0
CD06H5-0255 2.5X5.5X8.0 50 2.5-3.5
CD06H5-0256 2.5X6.5X12.0 60 2.5-3.5
CD06H5-0307 3.0X7.0X10.0 55 3.0-4.0
CD06H5-0308 3.0X8.0X14.0 65 3.0-4.0
CD06H5-0409 4.0X9.0X12.0 63 4.5-5.5
CD06H5-0410 4.0X10.0X18.0 76 4.5-5.5
CD06H5-0510 5.0X10.0X14.0 69 5.5-6.5
CD06H5-0512 5.0X12.5X20.0 80 5.5-6.5
CD06H5-0612 6.0X12.0X18.0 77 6.5-7.5
CD06H5-0615 6.0X15.0X25.0 100 6.5-7.5
