P. 38
HSS DRILLS 하이스 엔씨 드릴
120°, SKH55

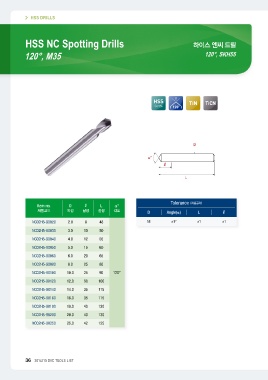

HSS NC Spotting Drills
120°, M35
HSS 120° TiN TiCN
Co 5%
Item no. D ℓ L α° Tolerance (허용공차) ℓ
제품코드 외경 날장 전장 각도 D Angle(α) L ±1
NC02H5-90020 2.0 8 48 h8 ±1° ±1
NC02H5-90030
NC02H5-90040 3.0 10 50
NC02H5-90050
NC02H5-90060 4.0 12 55
NC02H5-90080
NC02H5-90100 5.0 15 60
NC02H5-90120
NC02H5-90140 6.0 20 65
NC02H5-90160
NC02H5-90180 8.0 25 80
NC02H5-90200
NC02H5-90250 10.0 25 90 120°
12.0 30 100
14.0 35 115
16.0 35 115
18.0 40 130
20.0 40 130
25.0 42 135
