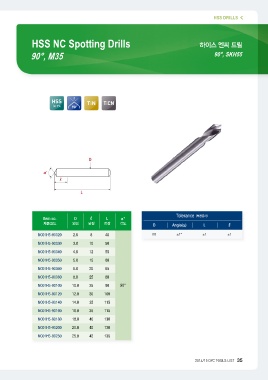

HSS NC Spotting Drills HSS DRILLS
90°, M35 하이스 엔씨 드릴
90°, SKH55
HSS 90° TiN TiCN
Co 5%
Item no. D ℓ L α° Tolerance (허용공차) ℓ
제품코드 외경 날장 전장 각도 D Angle(α) L ±1
NC01H5-90020 2.0 8 48 h8 ±1° ±1
NC01H5-90030
NC01H5-90040 3.0 10 50
NC01H5-90050
NC01H5-90060 4.0 12 55
NC01H5-90080
NC01H5-90100 5.0 15 60
NC01H5-90120
NC01H5-90140 6.0 20 65
NC01H5-90160
NC01H5-90180 8.0 25 80
NC01H5-90200
NC01H5-90250 10.0 25 90 90°
12.0 30 100
14.0 35 115
16.0 35 115
18.0 40 130
20.0 40 130
25.0 42 135
