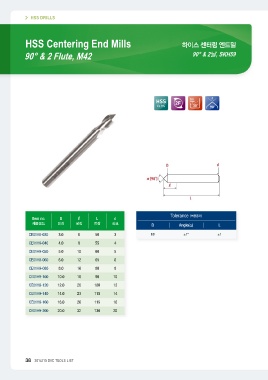

HSS DRILLS 하이스 센터링 엔드밀
90° & 2날, SKH59
HSS Centering End Mills

90° & 2 Flute, M42

HSS 2FCo 8% Helix 90°
Angle

30°

Item no. D ℓ L d Tolerance (허용공차)

제품코드 외경 날장 전장 샹크 D Angle(α) L

CE01H9-030 3.0 6 50 3 h8 ±1° ±1

CE01H9-040 4.0 8 55 4

CE01H9-050 5.0 10 60 5

CE01H9-060 6.0 12 65 6

CE01H9-080 8.0 16 80 8

CE01H9-100 10.0 18 90 10

CE01H9-120 12.0 20 100 12

CE01H9-140 14.0 23 115 14

CE01H9-160 16.0 26 115 16

CE01H9-200 20.0 32 130 20

38 2014/15 DYC TOOLS LIST
